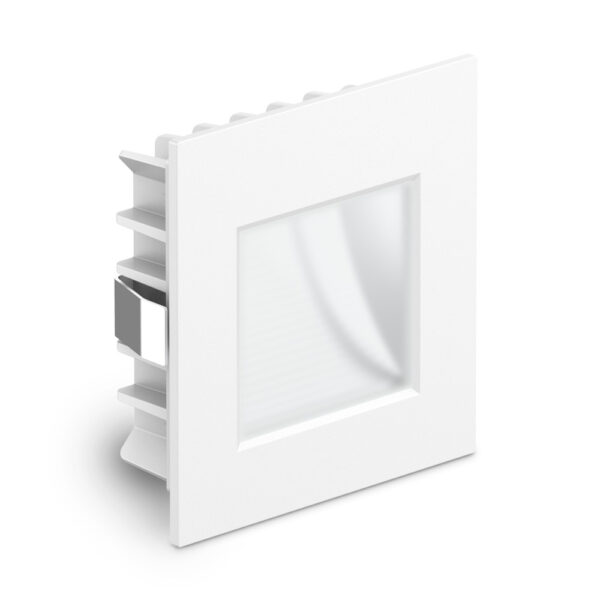

3W 24 Volt DC CV LED Square Recessed Step Light | IP54 Rated | 3000K Warm White | by atom
Illuminate your pathways with the 3W 24 Volt DC CV LED Square Recessed Step Light, featuring an IP54 rating for dust and water protection. Ideal for both residential and commercial applications, this durable light offers a long LED lifetime of 50,000 hours and a Colour Rendering Index (CRI) greater than 80, ensuring quality illumination for safety and aesthetics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Step Light, Recessed Step Light, Square LED Step Light, 24V LED Step Light, Outdoor Step Light
Technical Specifications
- Total System Efficiency: 33 lm/W (opal lens), 50 lm/W (clear lens)
- IP Rating: IP54
- IC Rating: IC-4
- Fitting Colour: White
- Body Material: Aluminium
- Diffuser Material: Glass
- Installation Type: Recessed
- Maximum Wattage: 3 W
- Input Voltage: 24V DC
- Colour Rendering Index (CRI): >80
- Number of Lamps: 1
- LED Type: Diffused
- CCT Configuration: Single
- Lamp/LED Voltage: 24 V
- Lamp/LED Current: 155 mA
- LED Lifetime: 50,000 hours
- Colour Temperature: 3000K (Warm White) or 4000K (Cool White)
- Luminaire Lumens: 100 lm (opal lens), 150 lm (clear lens)
- Driver Type: Fixed output (driver not included)
- Wiring Type: Flying leads (2 wire)
- Flex & Plug or Lead Length: 2 meters
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.3 kg
Key Features
- IP54 rated for protection against dust and water splashes
- IC-4 rated for safe insulation coverage in Australian environments
- Fixed adjustability for stable lighting direction
- Aluminium body with glass diffuser for durability and light diffusion
- High LED lifetime of 50,000 hours based on TM-21 standards
- Colour Rendering Index (CRI) greater than 80 for quality light
- Available in warm white (3000K) and cool white (4000K) colour temperatures
- Luminaire lumens output of 100 lm (opal lens) and 150 lm (clear lens)
- Operating at 24V DC with 3W maximum wattage
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper recessed mounting.
Applications
- Residential: Pathway and stair lighting
- Commercial: Outdoor step and pathway illumination
- Architectural: Accent and safety lighting in recessed locations
Standards & Compliance
- AS/NZS 60598 – Luminaires Safety Standards
Environmental Benefits
- Low power consumption with 3W LED reduces energy use
- Long LED lifetime of 50,000 hours minimizes waste and replacement frequency
- Durable materials reduce environmental impact through extended product life
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 2 years onsite plus 3 years return-to-base (total 5 years) available to registered users under specific terms.
Available Now
The Atom 3W 24 Volt DC CV LED Square Recessed Step Light is available for immediate purchase, ideal for residential and commercial recessed step lighting applications.
