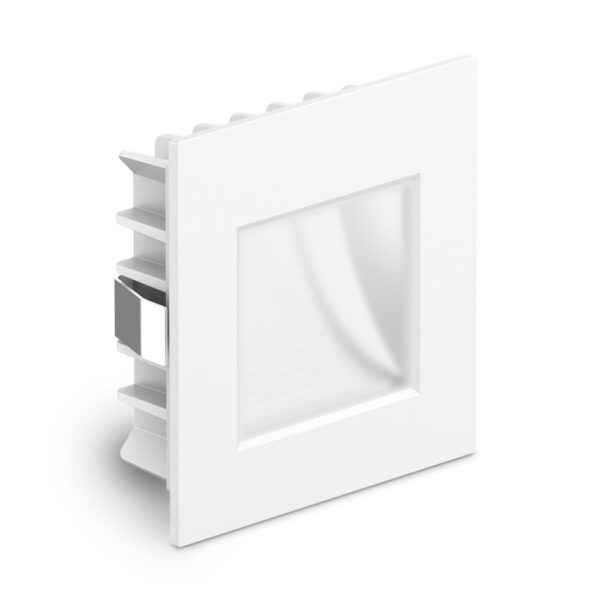

3W 24V DC LED Square Recessed Step Light | IP54 Rated | 3000K Warm White | by atom
The 3W 24 Volt DC LED Square Recessed Step Light is perfect for enhancing safety in pathways and staircases. With an IP54 rating for dust and water protection, this light features a clear glass diffuser and a warm white 3000K color temperature. Designed for both residential and commercial use, it offers a long LED lifetime of 50,000 hours, ensuring reliable performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Step Light 3W 24V, Recessed LED Step Light, Square LED Step Light, Outdoor Step Light, Pathway LED Light
Technical Specifications
- Total System Efficiency: 33 lm/W to 50 lm/W depending on model
- IP Rating: IP54
- IC Rating: IC-4
- Body Material: Aluminium
- Diffuser Material: Glass
- Maximum Wattage: 3 W
- Input Voltage: 24V DC
- Colour Rendering Index (CRI): >80
- Number of Lamps: 1
- LED Type: Diffused
- CCT Colour: 3000K (Warm White) or 4000K (Cool White)
- Lamp/LED Voltage: 24 V
- Lamp/LED Current: 155 mA
- LED Lifetime: 50,000 hours
- Driver Type: Fixed output (driver not included)
- Wiring Type: Flying leads (2 wire)
- Flex & Plug or Lead Length: 2 meters
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.3 kg
Key Features
- 3W LED power with 24V DC input voltage
- IP54 rated for protection against dust and water splashes
- IC-4 rated for safe insulation coverage in Australian environments
- Fixed adjustability with white finish and clear glass diffuser
- High LED lifetime of 50,000 hours based on TM-21
- Colour Rendering Index (CRI) greater than 80 for quality light
- Available in warm white (3000K) and cool white (4000K) colour temperatures
- Luminaire lumens output up to 150 lm depending on model
- Recessed installation type with flying leads wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and correct recessed mounting.
Applications
- Residential: Pathways, staircases, garden lighting
- Commercial: Outdoor steps, walkways, landscape lighting
- General: Recessed step lighting for safety and aesthetics
Standards & Compliance
- AS/NZS 60598 – Luminaires Safety Standards
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Low voltage operation enhances safety and reduces energy loss
Warranty Information
Standard 3 years return-to-base warranty. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 3W 24 Volt DC CV LED Square Recessed Step Light is available for immediate purchase, ideal for residential and commercial step and pathway lighting applications.
