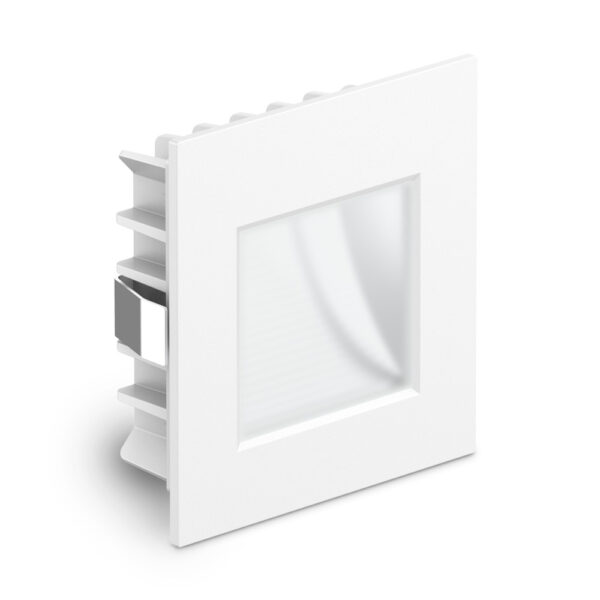

3W 24V DC LED Square Recessed Step Light | IP54 Rated | 4000K Cool White | by atom
Illuminate your pathways with the 3W 24 Volt DC LED Square Recessed Step Light, featuring an IP54 rating for dust and water protection. Designed for both residential and commercial use, this energy-efficient light offers a long LED lifetime of 50,000 hours and a luminous output of 100 lumens with an opal lens. Perfect for safe and stylish step and pathway lighting, it combines durability with modern aesthetics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Step Light 24V, Recessed LED Step Light, Square LED Step Light, Outdoor Step Light, Pathway LED Light
Technical Specifications
- Total System Efficiency: 33 lm/W (opal lens), 50 lm/W (clear lens)
- IP Rating: IP54
- IC Rating: IC-4
- Fitting Colour: White
- Body Material: Aluminium
- Diffuser Material: Glass
- Installation Type: Recessed
- Maximum Wattage: 3 W
- Input Voltage: 24V DC
- Colour Rendering Index (CRI): >80
- Number of Lamps: 1
- LED Type: Diffused
- CCT Configuration: Single
- Lamp/LED Voltage: 24 V
- Lamp/LED Current: 155 mA
- LED Lifetime: 50,000 hours
- Colour Temperature: 4000 K (Cool White) or 3000 K (Warm White)
- Luminaire Lumens: 100 lm (opal lens), 150 lm (clear lens)
- Driver Type: Fixed output (driver not included)
- Wiring Type: Flying leads (2 wire)
- Flex & Plug or Lead Length: 2 meters
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.3 kg
Key Features
- 3W LED power with 24V DC input voltage
- IP54 rated for protection against dust and water splashes
- IC-4 rated for safe insulation coverage in Australian environments
- Fixed adjustability with recessed installation
- Aluminium body with glass diffuser
- Colour Rendering Index (CRI) greater than 80
- Available in Cool White (4000K) and Warm White (3000K)
- LED lifetime of 50,000 hours based on TM-21 standards
- Luminaire lumens output of 100 lm (opal lens) or 150 lm (clear lens)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper recessed mounting.
Applications
- Residential: Pathway and stair lighting
- Commercial: Outdoor step and pathway illumination
- Architectural: Accent lighting for steps and walkways
Standards & Compliance
- Complies with AS/NZS 60598.1 – Luminaires General Requirements
- Complies with AS/NZS 60598.2.2 – Luminaires Particular Requirements
- Complies with EN55015 – Electromagnetic Compatibility
Environmental Benefits
- Energy-efficient LED technology reduces power consumption.
- Long LED lifetime minimizes waste and replacement frequency.
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 2 years onsite plus 3 years return-to-base (total 5 years) available to registered users under specific terms and conditions.
Available Now
The Atom 3W 24 Volt DC CV LED Square Recessed Step Light is available for immediate purchase, ideal for residential and commercial step and pathway lighting applications.
