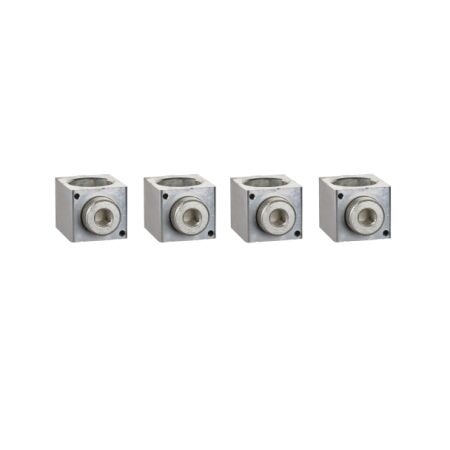

4 1x 35-300MM² Connectors PH B | High-Conductivity Copper Alloy | Electro-Tinned Finish | @Pack of 1 | by Clipsal
The 4 1x 35-300MM² Connectors PH B is designed for secure and reliable electrical connections, accommodating four single conductors from 35mm² to 300mm². Made from high-conductivity copper alloy and featuring an electro-tinned finish for corrosion resistance, this connector is ideal for industrial switchboards and heavy-duty cable connections, ensuring optimal performance in high current applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 1x 35-300MM² Connectors PH B | High-Conductivity Copper Alloy | Electro-Tinned Finish | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV432480
Alternatively Known As: large cable connector, power distribution connector, 4-way mechanical lug, 35-300mm² cable connector, SCHLV432480
Technical Specifications
- Number of connections: 4
- Conductor size range: 35mm² to 300mm²
- Material: High-conductivity copper alloy
- Finish: Electro-tinned
- Mounting: Panel or DIN rail
- Rated voltage: 1000V AC/DC
- Rated current: Up to 630A (depending on cable size)
- Operating temperature: -40°C to +120°C
- Dimensions (H x L x W): 60mm x 180mm x 120mm
- Weight: 2.5 kg
Key Features
- Accommodates 4 single conductors from 35mm² to 300mm²
- High-conductivity copper alloy construction
- Electro-tinned for corrosion resistance
- Secure and reliable mechanical connection
- Suitable for high current applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Electrical distribution boards
- Industrial switchboards
- Commercial and residential power installations
- Renewable energy systems
- Heavy-duty cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Corrosion-resistant finish extends product lifespan
- Supports efficient power distribution, reducing energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4 x 1x 35-300mm² PH B Connector (SCHLV432480) is available for immediate purchase. Ideal for industrial, commercial, and large-scale electrical installations.
