4.3-10 Socket for LL400/LMR400 | 50 Ohm | Spring Finger by Matchmaster
4.3-10 socket with 50 Ohm impedance and spring finger design—ideal for telecommunications and broadcasting. Built for secure connections, compatible with LL400 and LMR400 coaxial cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

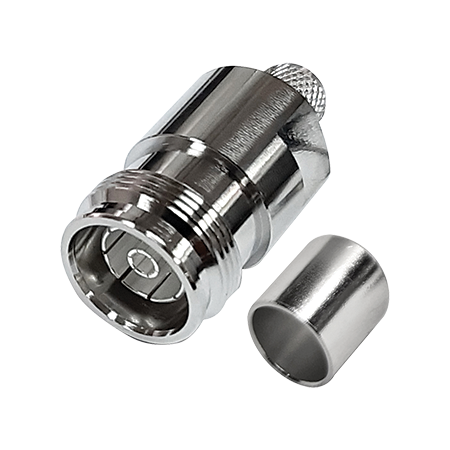

Product Name/Title: 4.3-10 Socket (Female) for LL400/LMR400 50 Ohm Spring Finger
Brand: Matchmaster
SKU: 56MM-43-10S
Alternatively Known As: 4.3-10 Female Connector, 4.3-10 RF Socket, LL400 Connector Female, LMR400 4.3-10 Socket
Technical Specifications
- Impedance: 50Ω nominal
- Frequency Range: DC to 6GHz
- VSWR: 1.20:1 max @ DC to 3GHz, 1.30:1 max @ 3 to 6GHz
- Insertion Loss: 0.15dB max @ DC to 3GHz, 0.25dB max @ 3 to 6GHz
- Temperature Range: -45 to +125 °C
- Passive Intermodulation: (2 x 20W) -150dBc min
- Dielectric: Teflon (PTFE)
- Waterproofing: Internal silicon rubber gasket
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.05 kg
Key Features
- 4.3-10 socket (female) connector compatible with 56MM-E400 series cable
- 50Ω nominal impedance with DC-6GHz frequency range
- Temperature range from -45 to +125 °C
- Brass body with SUCO plating and beryllium copper silver-coated centre pin
- Internal silicon rubber gasket for waterproofing
- Passive intermodulation: (2 x 20W) -150dBc
Professional Installation Requirements
- Installation by a qualified RF technician or electrician is recommended to ensure proper connection and waterproofing.
Applications
- Cellular and 2-Way Radio systems
- Use with 10mm solid core 50 ohm coax LL400/LMR400 cables
- Suitable for RF and communication equipment requiring 4.3-10 connectors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and electronic waste
- Waterproof design prevents corrosion, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 4.3-10 Socket (Female) for LL400/LMR400 50 Ohm Spring Finger is available now for immediate purchase. Ideal for cellular and 2-way radio communication applications.
