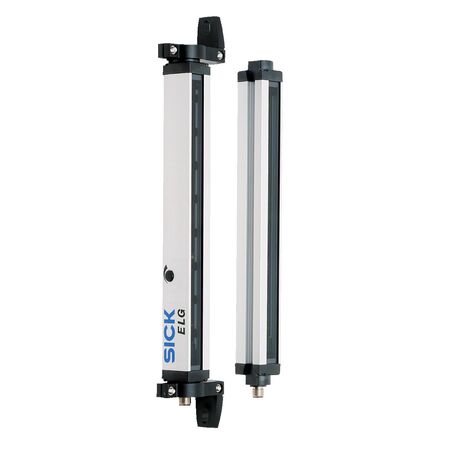

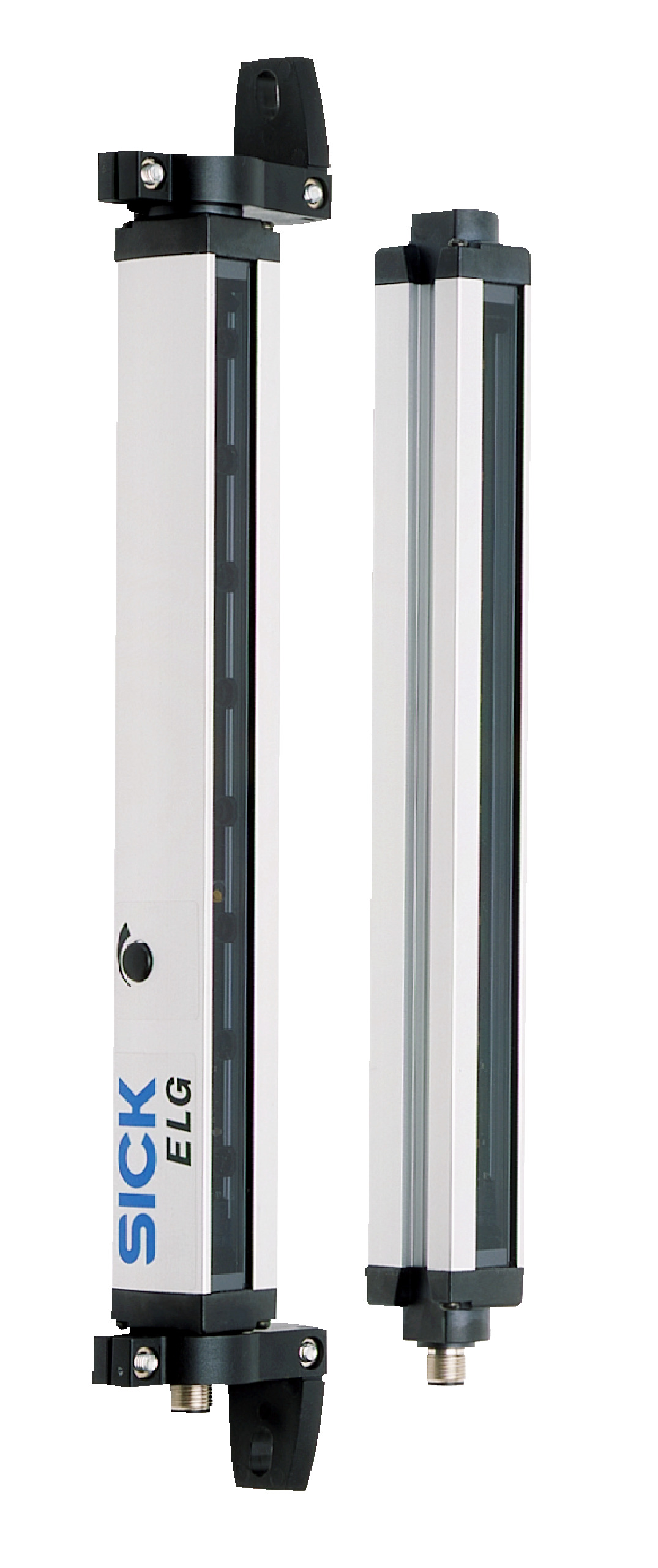

4-Beam Optical Sensor ELG3-0090P513 | IP65 Rated | Robust Aluminum Housing | by SICK
The 4-Beam Optical Sensor ELG3-0090P513 is designed for precise object detection in industrial automation. With a minimum detectable object size of 20 mm and a detection height of 90 mm, it ensures reliable performance in safety and monitoring applications. Featuring robust aluminum housing and IP65 enclosure rating, this sensor is built to withstand harsh environments, making it ideal for manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4-Beam Optical Sensor ELG3-0090P513 | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1025443
Alternatively Known As: SICK ELG3 Optical Sensor, 4-Beam Safety Sensor, Industrial Object Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Beam separation: 30 mm
- Number of beams: 4
- Detection height: 90 mm
- Evaluation beams: Cross beam
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 500 mm
- Operating range: 2 m
- Response time: 84 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 166mm x 29mm x 34mm
- Weight: 0.7 kg
Key Features
- Sender/receiver sensor principle with 4 beams
- Minimum detectable object size of 20 mm
- Detection height of 90 mm with cross beam evaluation
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable construction reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK ELG3-0090P513 Optical Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
