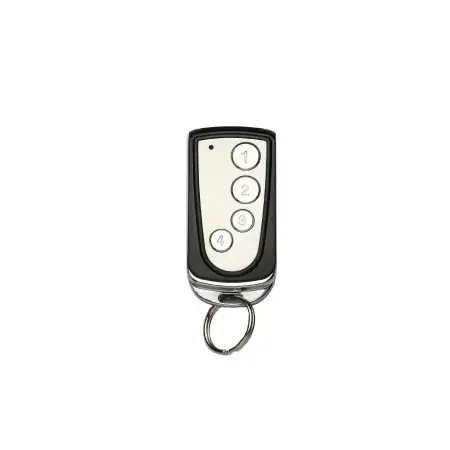

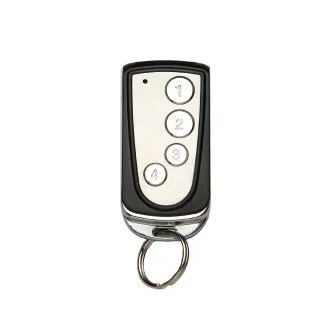

4-Button Wiegand Remote | 433 MHz Frequency | 100m Range | Long Battery Life | by Dicker Data
The 4-Button Wiegand Remote operates at a 433 MHz frequency with an impressive 100m range, making it perfect for access control systems. Designed for security applications, it features a patented sliding drawer for prox tag insertion and boasts a long battery life of up to 3 years. Ideal for gated entries and secured doors, this remote is compatible with EM, HID, or Mifare tags.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4-Button Wiegand Remote | 433 MHz Frequency | 100m Range | Long Battery Life | by Dicker Data
Brand: Dicker Data
SKU: RTW19-4
Alternatively Known As: Wiegand 4-Button Remote, Access Control Remote, Prox Tag Remote, Security Remote Control
Technical Specifications
- Frequency: 433 MHz
- Keeloq rolling code: 4.3 billion combinations
- Operating range: 100 meters (open air)
- Operating voltage: 6 V powered by 2 x CR2032 lithium batteries
- Battery life: 3 years under normal operating conditions
- Dimensions (H x L x W): 100mm x 20mm x 60mm
- Weight: 0.1 kg
Key Features
- 4-channel Wiegand remote with patented sliding drawer for prox tag insertion without opening the case
- Attractive metallic frame with stainless steel plate
- Long battery life of 3 years under normal operating conditions
- Long RF operating range of 100 meters in open air
- Compatible with EM, HID, or Mifare tags
Professional Installation Requirements
- Installation and programming should be performed by a qualified security system technician to ensure proper integration and security compliance.
Applications
- Access control systems requiring remote Wiegand signal transmission
- Security systems with EM, HID, or Mifare tag compatibility
- Remote control for gated entries, barriers, and secured doors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life reduces battery waste and replacement frequency
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
The ACTIVOR 4-Button Wiegand Remote is available for immediate purchase, ideal for access control and security system applications.
