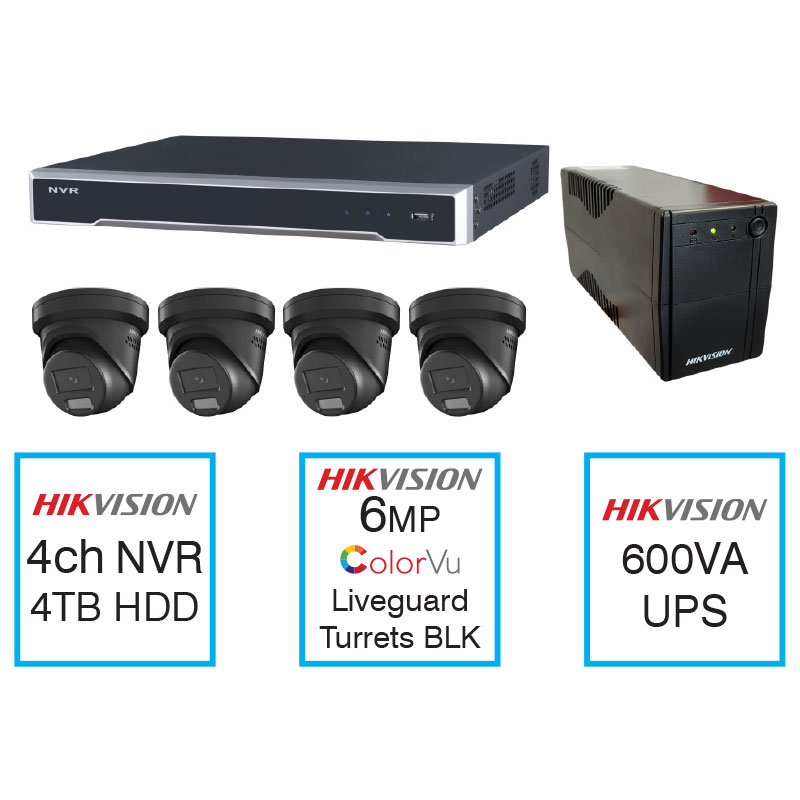

4 Channel CCTV Kit with 6MP ColorVu Turrets Black and UPS Hikvision
Hikvision 4 channel CCTV kit features 6MP ColorVu black turret cameras and a UPS. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision K-3042-BLK CCTV Kit, 4CH ColorVu CCTV System, 6MP Black Turret Camera Security Kit
Technical Specifications
- Kit Configuration: 4 x 6MP ColorVu hybrid turret cameras, 1 x 4-channel PoE NVR, 1 x 4TB HDD and 1 x 600VA UPS
- Camera Model: DS-2CD2367G2H-LISU/SL 2.8mm black turret
- Camera Resolution: 3200 x 1800 pixels, 6 megapixels
- Camera Illumination: ColorVu low-light imaging with IR and white-light supplementation
- Supplement Light Range: Up to 30 m
- Camera Compression: H.265, H.265+, H.264 and H.264+
- Camera Connectivity: IEEE 802.3af PoE or 12 VDC
- Ingress Protection: IP67 camera housing
- NVR Model: DS-7604NI-M1/4P 4-channel PoE NVR
- NVR Storage: 4TB surveillance-grade hard drive included
- NVR Video Capacity: Up to 4-channel 8MP decoding and 40Mbps incoming bandwidth
- UPS Model: DS-UPS600-AU
- UPS Capacity: 600VA / 360W
- UPS Battery: 12V 7Ah rechargeable lead-acid battery
- UPS Outlets: 2 Australian Type I mains outlets
- UPS Transfer Time: Up to 10 ms
- UPS Backup: Approximately 60 minutes at a 49W CCTV load, subject to conditions
- Dimensions (H x L x W): 300mm x 500mm x 400mm
- Weight: 14 kg
Key Features
- Four 6MP ColorVu turret cameras in black finish
- Full-colour surveillance in low-light conditions with Smart Hybrid Light
- IR and white-light illumination up to 30 m
- IP67-rated cameras suitable for outdoor installation
- PoE connectivity simplifies camera power and data cabling
- 4TB hard drive supplied for local video recording
- H.265+ compression helps reduce storage requirements and network bandwidth
- 600VA UPS provides short-term backup during outages and brown-outs
- Remote monitoring and notifications supported through Hik-Connect
- Human and vehicle detection supported by the camera and NVR platform
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV installer and licensed electrician where fixed mains wiring is required. Configure the system in accordance with the manufacturer’s instructions and applicable Australian electrical, data and CCTV installation requirements.
Applications
- Residential security surveillance
- Small business and retail premises
- Warehouses, workshops and commercial buildings
- Driveways, entrances and perimeter monitoring
- Outdoor areas requiring colour identification in low light
- Security systems requiring short-term power backup
Standards & Compliance
- AS 4806.1:2006 – applicable guidance for CCTV system installation and operation
- AS/NZS CISPR 32:2015 – EMC compliance reference declared for the Hikvision camera model
- AS/NZS 62368.1 – relevant safety standard for audio, video, information and communication technology equipment; verify the model-specific declaration for the supplied NVR and UPS
- RCM requirements apply to applicable Australian electrical and communications equipment
Environmental Benefits
- H.265+ video compression can reduce storage capacity and network bandwidth requirements compared with older compression formats
- UPS protection helps reduce premature electronic equipment replacement caused by brown-outs and short outages
- Metal camera housings and electronic components can be recovered through appropriate e-waste recycling streams
- The rechargeable UPS battery should be returned through an approved battery recycling or disposal program at end of life
Warranty Information
Hikvision’s Australian warranty matrix lists surveillance products with a 36-month warranty, while consumables and some accessories may have separate terms. Warranty support generally requires purchase through an authorised Australian distribution channel; confirm the assembled kit warranty with the supplying distributor.
Available Now
Available through Hikvision and authorised Australian security distributors, subject to current distributor stock and configuration.
