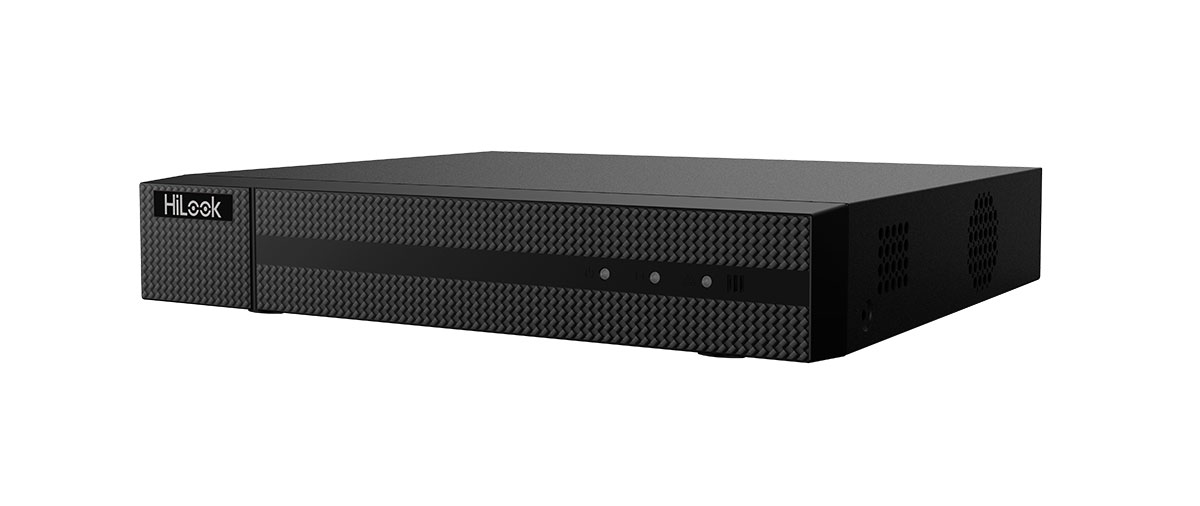

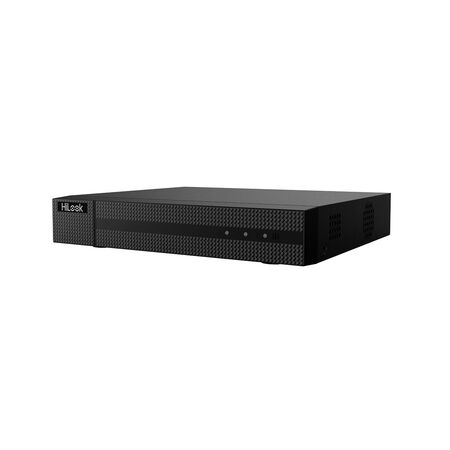

4 Channel NVR 4 PoE No HDD HiLook Hikvision

BRAND: Ness
SKU: 114-800B
$249.20 List price: $332.30
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision HiLook NVR features 4 channels, 4 PoE ports and no HDD included. Ideal for CCTV installs.

Alternatively Known As: HiLook 4-Channel PoE NVR, HiLook 4-Port PoE CCTV Recorder, Hikvision HiLook NVR

Technical Specifications
  • Model: NVR-104MH-C/4P(D)
  • Video Inputs: 4-channel IP camera input
  • Maximum Recording Resolution: Up to 8 MP
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • Video Compression: H.265+, H.265, H.264+, H.264 and MPEG4
  • Decoding Capability: 1-channel at 8 MP or 4-channel at 1080p
  • Video Outputs: HDMI and VGA simultaneous output
  • PoE Ports: 4 x RJ-45 10/100 Mbps
  • PoE Standard: IEEE 802.3af/at
  • PoE Power Budget: Up to 50 W
  • Storage: 1 x SATA interface, up to 8 TB
  • Hard Drive: Not included
  • USB: 2 x USB 2.0
  • Power Supply: 48 VDC, 1.35 A
  • Power Consumption: Up to 10 W without HDD and with PoE disabled
  • Operating Temperature: -10°C to 55°C
  • Operating Humidity: 10% to 90%
  • Chassis: Mini 1U
  • Dimensions (H x L x W): 48mm x 265mm x 225mm
  • Weight: 1 kg
Key Features
  • Four built-in PoE ports for direct connection and power to compatible IP cameras
  • Supports up to four IP camera inputs at resolutions up to 8 MP
  • 4K HDMI video output with simultaneous VGA output
  • H.265+ compression helps reduce recording storage requirements
  • One SATA bay supports a surveillance-grade HDD up to 8 TB
  • Motion Detection 2.0 with human and vehicle analysis
  • Remote viewing and management through HiLookVision-compatible platforms
  • Supplied without a hard disk drive for flexible storage selection
Professional Installation Requirements
  • Fixed CCTV installations should be planned, terminated and commissioned by a suitably qualified security or electrical trade professional. Follow applicable electrical installation, structured cabling and video surveillance requirements, and install the optional HDD before recording is required.
Applications
  • Residential CCTV systems
  • Small commercial security installations
  • Retail shops and offices
  • Workshops, warehouses and light industrial premises
  • Four-camera IP surveillance systems requiring integrated PoE
Standards & Compliance
  • AS/NZS 62676.1.1:2020 - Video surveillance systems for use in security applications
  • AS/NZS 3820 - Essential safety requirements for electrical equipment
  • AS/NZS 3000:2018 - Relevant to fixed electrical installation work
Environmental Benefits
  • H.265+ compression can reduce storage requirements, potentially reducing HDD capacity and associated material use
  • The recorder is supplied without an HDD, allowing installation of an appropriately sized surveillance drive rather than unnecessary included hardware
  • Low operating consumption of up to 10 W with PoE disabled can help reduce standby energy use
  • A replaceable SATA HDD and serviceable recorder design can extend system life and reduce electronic waste
Warranty Information

Typically covered by a 3-year manufacturer warranty when purchased through an authorised Australian Hikvision or HiLook distribution channel; confirm terms with the supplying distributor.

Available Now

Available through Hikvision HiLook and authorised Australian security, electrical and CCTV distributors.
