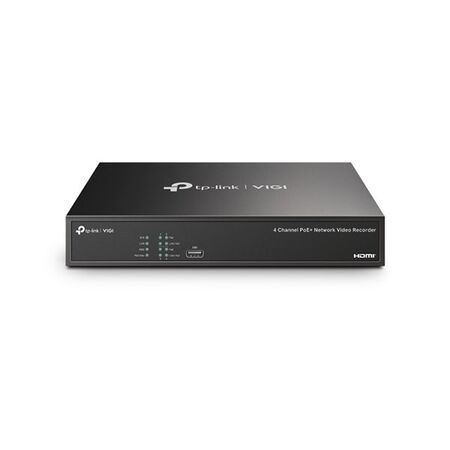

4 Channel PoE+ Network Video Recorder 4K HDMI No HDD Ness

BRAND: Ness
SKU: 126-560
$237.20 List price: $316.30
+ −
30 Days Return Electricians Unlock Trade Access
Ness network video recorder features 4 channels, PoE+ ports, 4K HDMI output and 16MP decoding. Supplied without HDD. Ideal for CCTV installs.

Alternatively Known As: TP-Link VIGI NVR1004H-4P, 4-Channel PoE NVR, CCTV Network Video Recorder

Technical Specifications
  • Model: VIGI NVR1004H-4P
  • Video Inputs: 4-channel IP camera input, up to 8MP per camera
  • Decoding Capacity: Up to 16MP total; 2-channel at 8MP or 4-channel at 4MP
  • HDMI Output: 4K UHD, 3840 x 2160 at 30Hz
  • VGA Output: Up to 1920 x 1080 at 60Hz
  • Video Compression: H.265+, H.265, H.264+ and H.264
  • Network Bandwidth: 80Mbps incoming, 60Mbps outgoing
  • PoE Ports: 4 x 10/100Mbps PoE+ ports
  • PoE Standard: IEEE 802.3af/at
  • PoE Budget: 53W total
  • Storage Interface: 1 x SATA, up to 10TB
  • Hard Drive: Not included
  • Network Interface: 1 x 10/100Mbps RJ45 Ethernet port
  • USB Interface: 2 x USB 2.0
  • Power Supply: 53.5V DC, 1.31A
  • Operating Temperature: -10°C to +55°C
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Certifications: RCM, CE, UKCA, FCC and HDMI
  • Dimensions (H x L x W): 45mm x 246.2mm x 148.2mm
  • Weight: 1 kg
Key Features
  • Four integrated PoE+ ports for direct connection and power delivery to IP cameras
  • 4K HDMI video output for local monitoring and playback
  • Supports up to 16MP total decoding capacity
  • H.265+ compression helps reduce storage and network bandwidth requirements
  • One SATA interface supports a separately purchased surveillance hard drive up to 10TB
  • Four-channel synchronous playback
  • HDMI and VGA simultaneous video output
  • Remote monitoring through the VIGI platform
  • ONVIF support for compatible network cameras
  • Compact 1U-style chassis for CCTV installations
Professional Installation Requirements
  • Installation should be performed by a competent CCTV installer. Any fixed mains electrical work must be completed by a suitably licensed electrician in accordance with applicable Australian electrical requirements.
Applications
  • Small commercial CCTV systems
  • Residential security camera installations
  • Retail and office surveillance
  • Light industrial and warehouse monitoring
  • Remote video monitoring installations
  • Four-camera PoE IP surveillance systems
Standards & Compliance
  • RCM certification is listed for the product; applicable Australian/New Zealand electrical safety requirements include AS/NZS 62368.1 for audio, video, information and communication technology equipment.
  • Suitable for CCTV systems designed in accordance with the AS/NZS 62676 series, including AS/NZS 62676.1.1:2020 system requirements.
Environmental Benefits
  • H.265+ compression can reduce storage requirements and associated energy consumption compared with less efficient video codecs.
  • The recorder supports an HDD selected to suit the required retention period, avoiding unnecessary storage capacity.
  • Low-power operation without HDD and PoE enabled is specified at approximately 4.25W.
  • Long-term serviceability and replaceable storage can extend product life and reduce electronic waste.
Warranty Information

3-year warranty for domestic and commercial use when supplied through the Australian distribution channel, subject to TP-Link and Ness warranty conditions.

Available Now

Available through Ness and authorised Australian security and networking distributors, subject to distributor stock.
