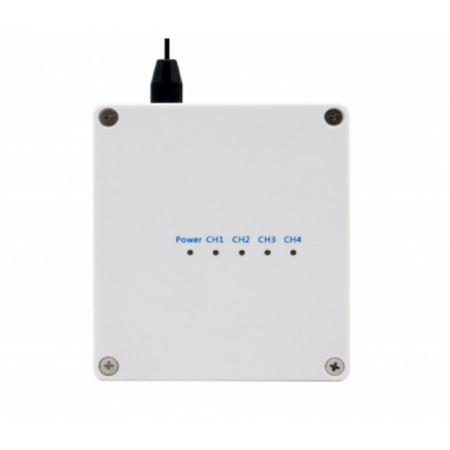

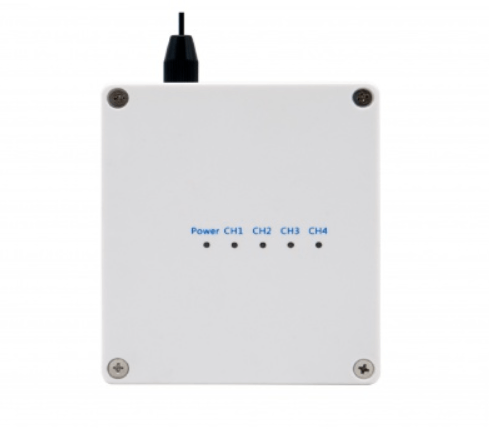

4 Channel Wiegand Receiver | IP65 Rated | 433MHz Frequency | LED Indicators | by Dicker Data
The 4 Channel Wiegand Receiver is designed for outdoor access control systems, featuring an IP65 rating and 433MHz frequency for reliable data reception. With on-board LED indicators for each channel, it ensures efficient monitoring and management of security and entry systems, making it ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Channel Wiegand Receiver | IP65 Rated | 433MHz Frequency | LED Indicators | by Dicker Data
Brand: Dicker Data
SKU: RRW01
Alternatively Known As: Wiegand 26bit Receiver, Outdoor Wiegand Receiver, 4 Channel Wiegand Receiver
Technical Specifications
- Frequency: 433MHz (other frequencies available on request)
- Voltage: 9-15VDC
- Current: 15mA
- IP Rating: IP65
- Channels: 4
- Data Format: Wiegand 26bit
- Indicators: On-board LED for each channel
- Dimensions (H x L x W): 45mm x 190mm x 100mm
- Weight: 0.3 kg
Key Features
- Supports Wiegand 26bit data format with 4 channels
- 433MHz frequency with options for other frequencies on request
- Site-code-verification or non-code-verification modes available
- On-board LED indicators for each channel to show data passage
- IP65 rated for outdoor use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor access control systems
- Security and entry management
- Industrial and commercial premises requiring remote Wiegand data reception
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 15mA current draw reduces energy usage
- Durable IP65 enclosure minimizes environmental impact by extending product lifespan
Warranty Information
1 year warranty covering manufacturing defects.
Available Now
The ACTIVOR 4 Channel 26 Bit Wiegand Receiver Outdoor is available for immediate purchase, ideal for outdoor security and access control systems.
