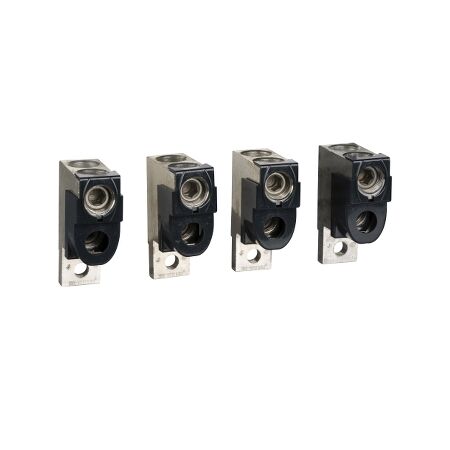

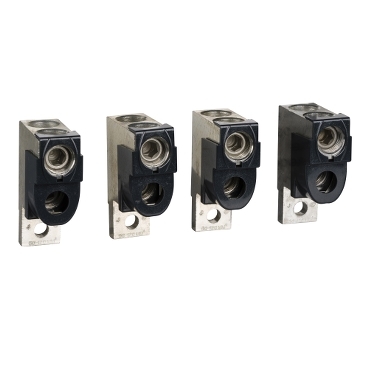

4 Connectors (2x 50-120MM²) PH | 250A Current Rating | Aluminium Construction | by Clipsal
The 4 Connectors (2x 50-120MM²) PH are designed for reliable electrical connections, accommodating two cables per connector with a current rating of 250A. Made from durable aluminium, these connectors are perfect for industrial and commercial applications, ensuring secure and efficient power distribution with ComPacT NSX circuit breakers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Connectors (2x 50-120MM²) PH | 250A Current Rating | Aluminium Construction | by Clipsal
Brand: Clipsal
SKU: SCHLV429219
Alternatively Known As: Clipsal cable connector, SCHLV429219, ComPacT NSX connector, 250A aluminium connector, 4-way cable connector
Technical Specifications
- Number of connectors: 4 (2 per phase)
- Cable size compatibility: 50mm² to 120mm²
- Material: Aluminium, bare
- Current rating: 250A
- Compatible with: ComPacT NSX circuit breakers
- Mounting: Panel or busbar
- Dimensions (H x L x W): 40mm x 120mm x 60mm
- Weight: 0.6 kg
Key Features
- Accommodates 2 cables per connector, each from 50mm² to 120mm²
- Rated for 250A current
- Aluminium bare cable connectors for reliable conductivity
- Designed for use with ComPacT NSX circuit breakers
- Robust construction for secure and durable connections
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian standards and optimal safety.
Applications
- Electrical distribution panels
- Industrial switchboards
- Commercial and residential power installations
- Suitable for use with ComPacT NSX circuit breakers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminium construction reduces the need for frequent replacements
- Supports efficient electrical connections, minimizing energy loss
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal 4 Connectors (2x 50-120MM²) PH SCHLV429219 are available for immediate purchase. Ideal for industrial and commercial electrical distribution panels and switchboards.
