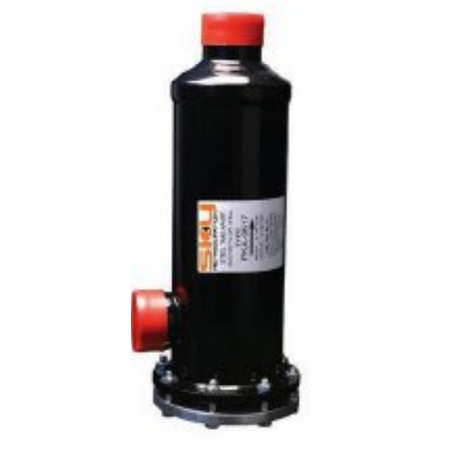

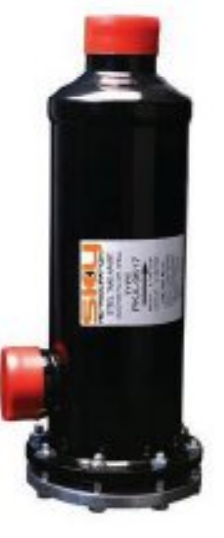

4 Core - 1-5/8 SOL Pressure Vessel Filter Drier | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
The 4 Core - 1-5/8 SOL Pressure Vessel Filter Drier is designed for high-pressure HVAC and refrigeration systems, supporting R-410a and CO2 applications. With a robust double plated steel end plate and a large secondary mesh filter, it ensures efficient operation and minimal pressure drop. Ideal for commercial and industrial use, this filter drier enhances system integrity and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Core - 1-5/8 SOL Pressure Vessel Filter Drier | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-2604
Alternatively Known As: Pressure Vessel Filter Drier, Refrigeration Filter Shell, HVAC Filter Drier Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection size: 1 5/8 inch
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C
- Large secondary mesh filter for particulate removal with minimal pressure drop

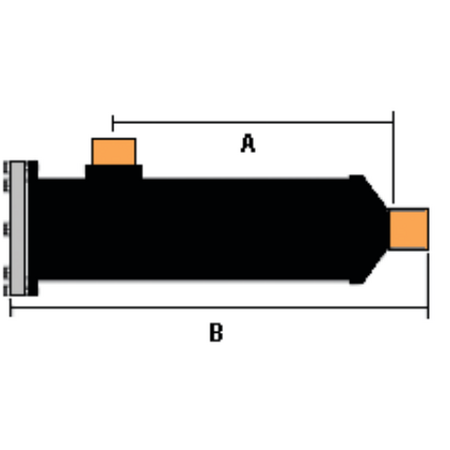

- Dimensions (H x L x W): 100mm x 567mm x 100mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration professional is recommended to ensure system integrity and safety.
Applications
- HVAC systems requiring high-pressure filter and drier shells
- Commercial and industrial refrigeration systems
- Systems using R-410a refrigerant and CO2 upgradeable applications
Standards & Compliance
- Complies with AS/NZS ISO 5149.2 for refrigeration safety and performance
Environmental Benefits
- Supports efficient refrigeration system operation reducing energy consumption
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps SKY Pressure Vessel 4 Core - 1-5/8 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration and HVAC applications.
