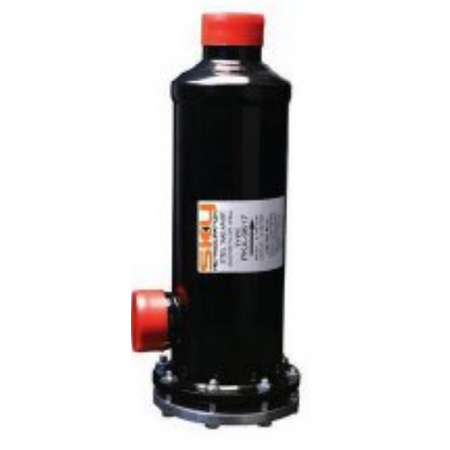

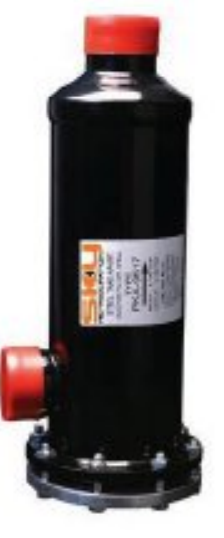

4 Core - 2-1/8 SOL HVAC Pressure Vessel | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
The 4 Core - 2-1/8 SOL HVAC Pressure Vessel is designed for high-pressure filter and drier applications in commercial and industrial refrigeration systems. Manufactured in accordance with ISO/AS 5149.2 standards, it features a durable anti-corrosion powder coat finish and solid copper connections for easy installation. Ideal for systems using R-410a refrigerant, this vessel ensures efficient operation and extended service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Core - 2-1/8 SOL HVAC Pressure Vessel | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-3404
Alternatively Known As: Pressure Vessel 4 Core 2-1/8 SOL, Accessible Filter and Drier Shell, HVAC Pressure Vessel
Technical Specifications
- Standard: ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection Size: 2 1/8 inches
- Material: Double plated steel end plate, stainless steel bolts, solid copper connections
- Filter: Large secondary mesh filter for particulate removal with minimal pressure drop
- Finish: Anti-corrosion powder coat

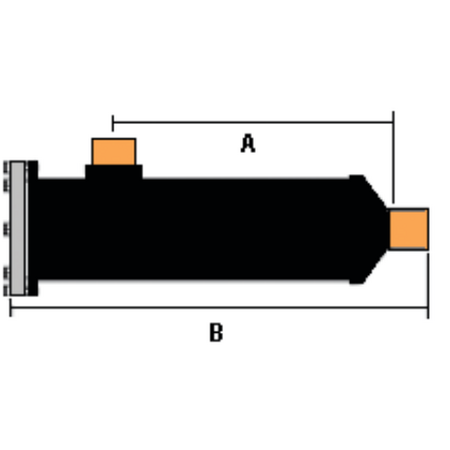

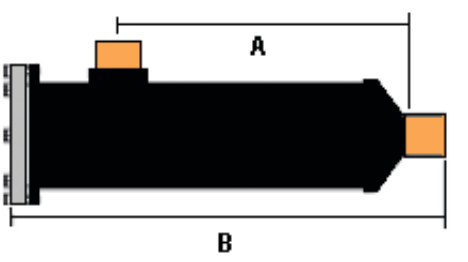

- Dimensions (H x L x W): 70mm x 567mm x 70mm
- Weight: 5 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2 standards
- Safe working pressure (SWP) of 4,380 kPa
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure system integrity and compliance with safety standards.
Applications
- HVAC systems requiring high-pressure filter and drier vessels
- Commercial and industrial refrigeration systems
- Systems using R-410a refrigerant and CO2 upgradeable setups
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports efficient refrigeration system operation reducing energy consumption
- Durable corrosion-resistant materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel 4 Core - 2-1/8 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration applications requiring high-pressure filter and drier solutions.
