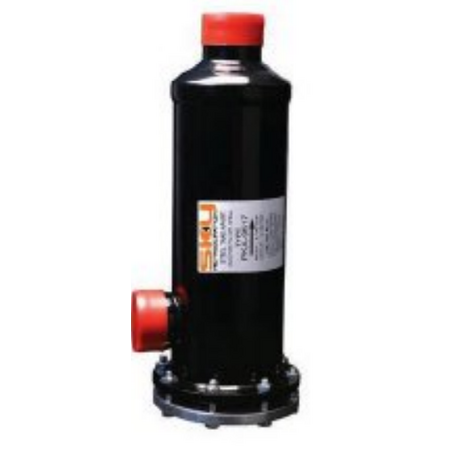

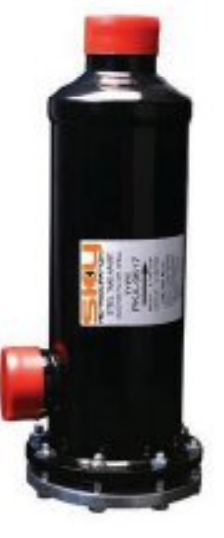

4 Core - 2-5/8 SOL Filter Drier | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
The 4 Core - 2-5/8 SOL Filter Drier is designed for HVAC systems requiring high-pressure filtration, compatible with R-410a and CO2 refrigerants. Built with a double plated steel end plate and solid copper connections, it ensures durability and ease of installation. Ideal for commercial and industrial refrigeration applications, this filter drier features a large secondary mesh filter for effective particulate removal with minimal pressure drop.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Core - 2-5/8 SOL Filter Drier | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-4204
Alternatively Known As: Filter Drier Shell, Refrigeration Pressure Vessel, HVAC Filter Drier
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection size: 2 5/8 inches
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C, pressure drop 7 kPa
- Double plated steel end plate with stainless steel bolts
- Anti-corrosion powder coat finish
- Solid copper connections
- Large secondary mesh filter for particulate removal with minimal pressure drop

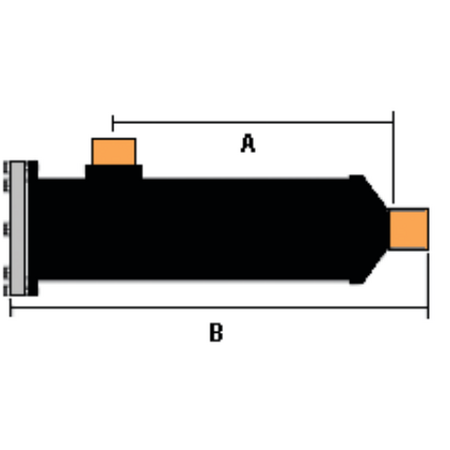

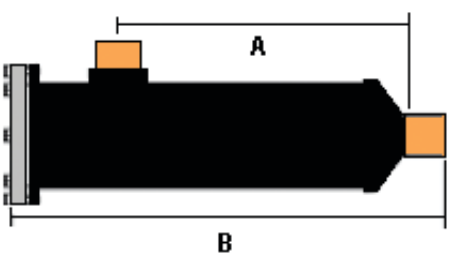

- Dimensions (H x L x W): 70mm x 567mm x 70mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration specialist is recommended to ensure compliance with safety standards and optimal system performance.
Applications
- HVAC systems requiring high-pressure filter and drier vessels
- Commercial and industrial refrigeration systems
- Air conditioning systems using R-410a and CO2 refrigerants
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports use of environmentally friendly refrigerants like R-410a and CO2
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel 4 Core - 2-5/8 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration and air conditioning applications.
