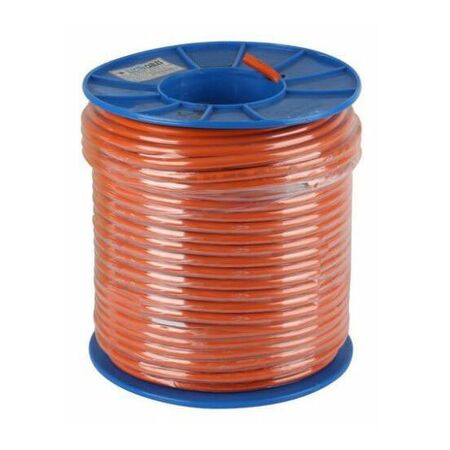

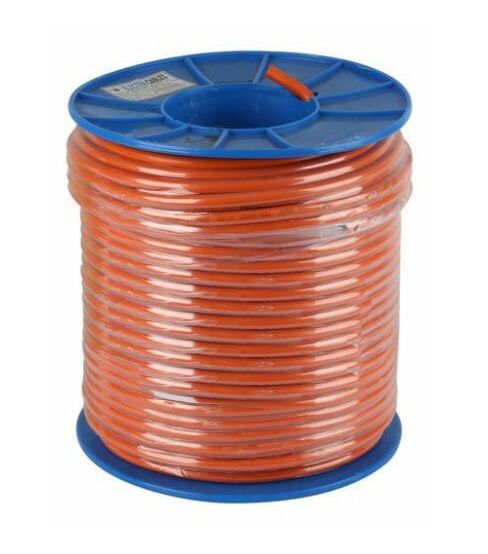

4 Core + Earth Power Cable | 6mm² Orange Circular | 450/750V Rated | by Electra Cables
The 4 Core + Earth Power Cable is a robust 6mm² orange circular cable, designed for reliable electrical wiring in residential, commercial, and industrial applications. With a voltage rating of 450/750V and durable PVC insulation, it ensures safety and longevity. Ideal for mains, sub mains, and sub circuits, this cable is perfect for both enclosed and unenclosed installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 4 Core + Earth Power Cable, 6mm² Circular Cable, Orange Electrical Cable 450/750V
Technical Specifications
- Conductor: Plain annealed copper (AS/NZS 1125)
- Insulation: PVC V90
- Sheath: PVC 5V-90
- Voltage Rating: 450/750V
- Operating Temperature: 90°C
- Length: 100m roll
- Dimensions (H x L x W): 20mm x 100000mm x 20mm
- Weight: 37 kg
Key Features
- 6mm² 4 core + Earth
- Orange circular cable
- Rated voltage 450/750V
- Plain annealed copper conductor
- PVC V90 insulation
- PVC 5V-90 sheath
- Normal operating temperature 90°C
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with safety standards and proper handling.
Applications
- Mains, sub mains and sub circuits
- Unenclosed or enclosed in conduit
- Buried direct or underground ducts for buildings and industrial plants
- Suitable for glanding
Standards & Compliance
- Complies with AS/NZS 5000.2 for electrical cables
Environmental Benefits
- Durable PVC insulation and sheath reduce environmental impact by extending cable life
- Copper conductor is recyclable
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables for detailed warranty terms.
Available Now
The Electra Cables 7/104 X 4C +E Orange Circular Power Cable 450/750V 100m roll is available for immediate purchase, ideal for electrical wiring in residential, commercial, and industrial applications.
