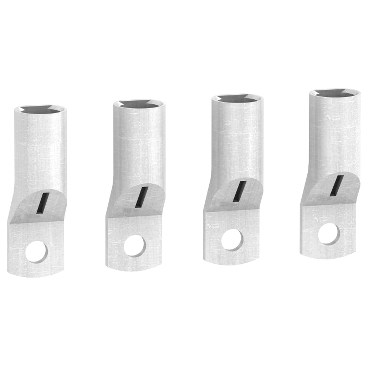

4 CU 150MM² Crimp Lugs | High-Conductivity Copper | Tin-Plated Finish | PH Connection Type | @Pack of 1 | by Clipsal
4 CU 150MM² Crimp Lugs are designed for optimal electrical performance with high-conductivity copper construction and a reliable crimp connection. Ideal for power bar and busbar terminations, these lugs feature a tin-plated finish for enhanced corrosion resistance, making them perfect for heavy-duty electrical installations in industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 CU 150MM² Crimp Lugs | High-Conductivity Copper | Tin-Plated Finish | PH Connection Type | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429257
Alternatively Known As: 150mm² Copper Crimp Lug, Power Bar Lug, Busbar Crimp Terminal, SCHLV429257 Lug, Clipsal Copper Lug
Technical Specifications
- Material: High-conductivity copper
- Cable Size: 150mm²
- Surface Finish: Tin-plated
- Connection Type: Crimp
- Application: Power bar/busbar termination
- Hole Type: PH (Palm Hole) for secure bolting
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.45 kg
Key Features
- High-conductivity copper construction for optimal electrical performance
- Designed for 150mm² cable size
- Reliable crimp connection for secure cable termination
- Tin-plated finish for enhanced corrosion resistance
- Suitable for use with power bars and busbars
Professional Installation Requirements
- Installation must be performed by a licensed electrician using appropriate crimping tools to ensure a secure and compliant connection.
Applications
- Electrical distribution boards
- Industrial switchboards
- Power transmission and distribution systems
- Heavy-duty electrical installations
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Copper material is fully recyclable, reducing environmental impact.
- Long-lasting corrosion resistance minimizes replacement frequency and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal 4 CU 150MM² Crimp Lugs PH BARR (SCHLV429257) is available for immediate purchase. Ideal for industrial and commercial electrical installations requiring secure large cable terminations.
