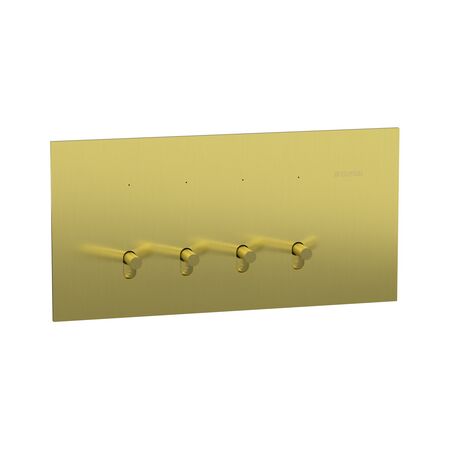

4 Gang Horizontal Toggle Switch | 10AX Rated | 1-Pole 1/2-Way Function | Flush Mounting | by Clipsal
The 4 Gang Horizontal Toggle Switch is designed for efficient lighting control in residential, commercial, and industrial settings. With a rated operational voltage of 230/240 V and a current capacity of 20 A/16 AX, this switch features screw terminal connections and is suitable for LEDi lamps up to 250 W. Its flush mounting and horizontal installation make it a versatile choice for any application, ensuring compliance with AS/NZS 60669 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Gang Horizontal Toggle Switch | 10AX Rated | 230/240V | LEDi Compatible | by Clipsal
Brand: Clipsal
SKU: CLI1043TA-BB
Alternatively Known As: 3 Gang Horizontal Toggle Switch, 10AX Switch, Clipsal 3G Switch
Technical Specifications
- Device presentation: complete product
- Number of gangs: 3
- Rated operational voltage: 230/240 V
- Rated current: 20 A/16 AX
- Control type: toggle switch
- Connections: screw terminals
- Device mounting: flush
- Number of rockers: 1
- Installation direction: horizontal
- Load type: LEDi lamp 0...250 W
- Clamping connection capacity: 4 x 1.5...3 x 2.5 mm²
- Screwdriver shape: Philips No 2, square drive no 1 (SQ1)
- Wire stripping length: 10 mm
- Fixing mode: screw
- Fixing center: 84 mm
- Switch function: 1-pole 1/2-way
- Ambient air temperature for operation: 0...45 °C
- Relative humidity: 10...95 %
- Material: ceramic
- Dimensions (H x L x W): 74mm x 56mm x 148mm
- Weight: 0.2 kg
Key Features
- 3 gangs toggle switch with 1-pole 1/2-way function
- Rated operational voltage of 230/240 V
- Rated current 20 A/16 AX suitable for LEDi lamps 0...250 W
- Flush mounting with screw fixing and 84 mm fixing center
- Screw terminals with clamping capacity 4 x 1.5...3 x 2.5 mm²
- Mercury free and RoHS compliant with exemptions
- Ambient operating temperature 0...45 °C and relative humidity 10...95%
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Residential: Lighting control in homes
- Commercial: Office and retail lighting control
- Industrial: Suitable for LEDi lamp loads
Standards & Compliance
- Complies with AS/NZS 60669 for switches
Environmental Benefits
- Mercury free design reduces hazardous material use
- Compliant with RoHS directive minimizing harmful substances
- Designed for energy-efficient LEDi lamp loads
Warranty Information
Standard manufacturer warranty applies; please refer to Clipsal warranty terms.
Available Now
The Clipsal Switch Horiz 3G 10AX CLI1043TA-BB is available for immediate purchase, ideal for residential, commercial, and industrial lighting control applications.
