4 LED RAS Flush or Surface Mount Tecom

BRAND: Ness
SKU: 120-104
$573.40 List price: $764.50
+ −
30 Days Return Electricians Unlock Trade Access

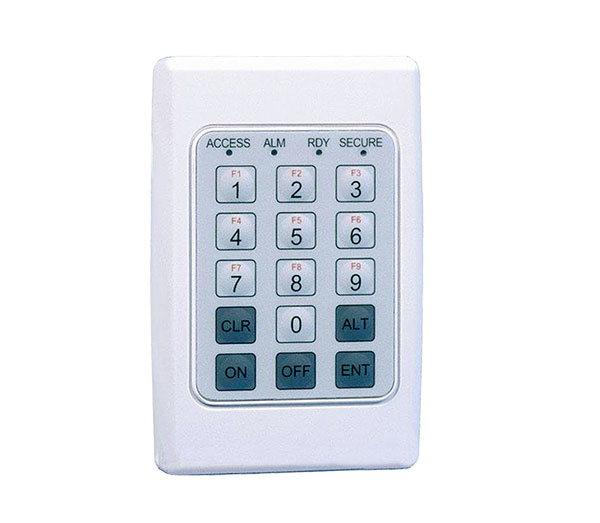

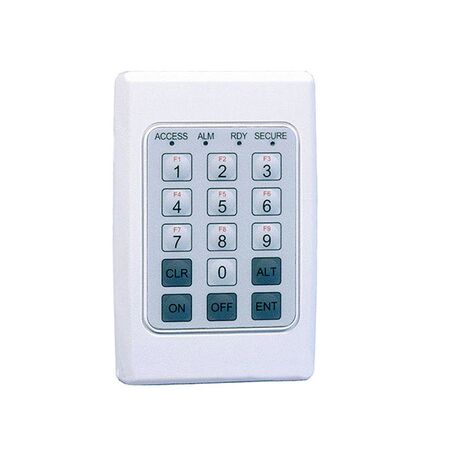

Tecom 4 LED RAS features Access, Alarm, Ready and Secure indicators with flush or surface mounting. Ideal for alarm system status indication.

Alternatively Known As: Tecom 4 LED RAS, Tecom 4 LED Arming Station, Challenger 4 LED Keypad

Technical Specifications
  • Model: TS0003
  • LED Indicators: Access, Alarm, Ready and Secure
  • Mounting: Flush or surface mounted
  • System Compatibility: Tecom Challenger access control and alarm systems
  • Maximum Cable Distance: Up to 1.5 km from the Challenger controller
  • Output: One open-collector output for relay or LED connection
  • Input: One input for egress function
  • Programming: LEDs can indicate assigned areas or system statuses
  • Dimensions (H x L x W): 100mm x 30mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Four dedicated status LEDs for access, alarm, ready and secure conditions
  • Flush or surface mounting options
  • Robust hard-wearing keypad buttons
  • Compatible with Tecom Challenger controllers
  • Suitable for residential and commercial alarm and access-control installations
  • LED functions can be programmed for area status indication on compatible systems
Professional Installation Requirements
  • Installation, wiring and programming should be performed by a qualified security technician familiar with Tecom Challenger systems. The installation should follow the applicable requirements of AS/NZS 2201.1.
Applications
  • Intruder alarm status indication
  • Access-control system status indication
  • Residential security systems
  • Commercial security systems
  • Tecom Challenger system upgrades and replacement installations
Standards & Compliance
  • Applicable to intruder alarm system installations designed, installed, commissioned and maintained in accordance with AS/NZS 2201.1:2007
Environmental Benefits
  • LED status indicators provide a low-power visual indication method
  • Durable construction can reduce replacement frequency and associated electronic waste
Warranty Information

Tecom Challenger hardware is covered by a 5-year warranty from the date of manufacture, subject to the manufacturer's warranty terms and conditions.

Available Now

Available through Tecom and authorised Australian security-system distributors and installers.
