Making Trade Life Easy!

Home/Electrical/Cabling/Cable/Flexible Cable/4 Pin Plug 300A | 660V to 3300V | IP55 Rated | Quick Release by Ausproof

Trade Discount 19%

PL 3300V 300A 4 Pin Plug (270) 50-C 50-55-G (241.3)

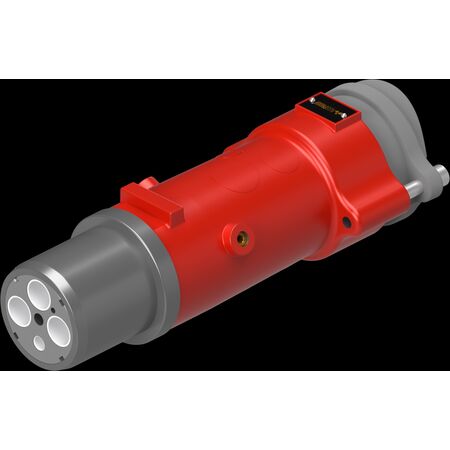

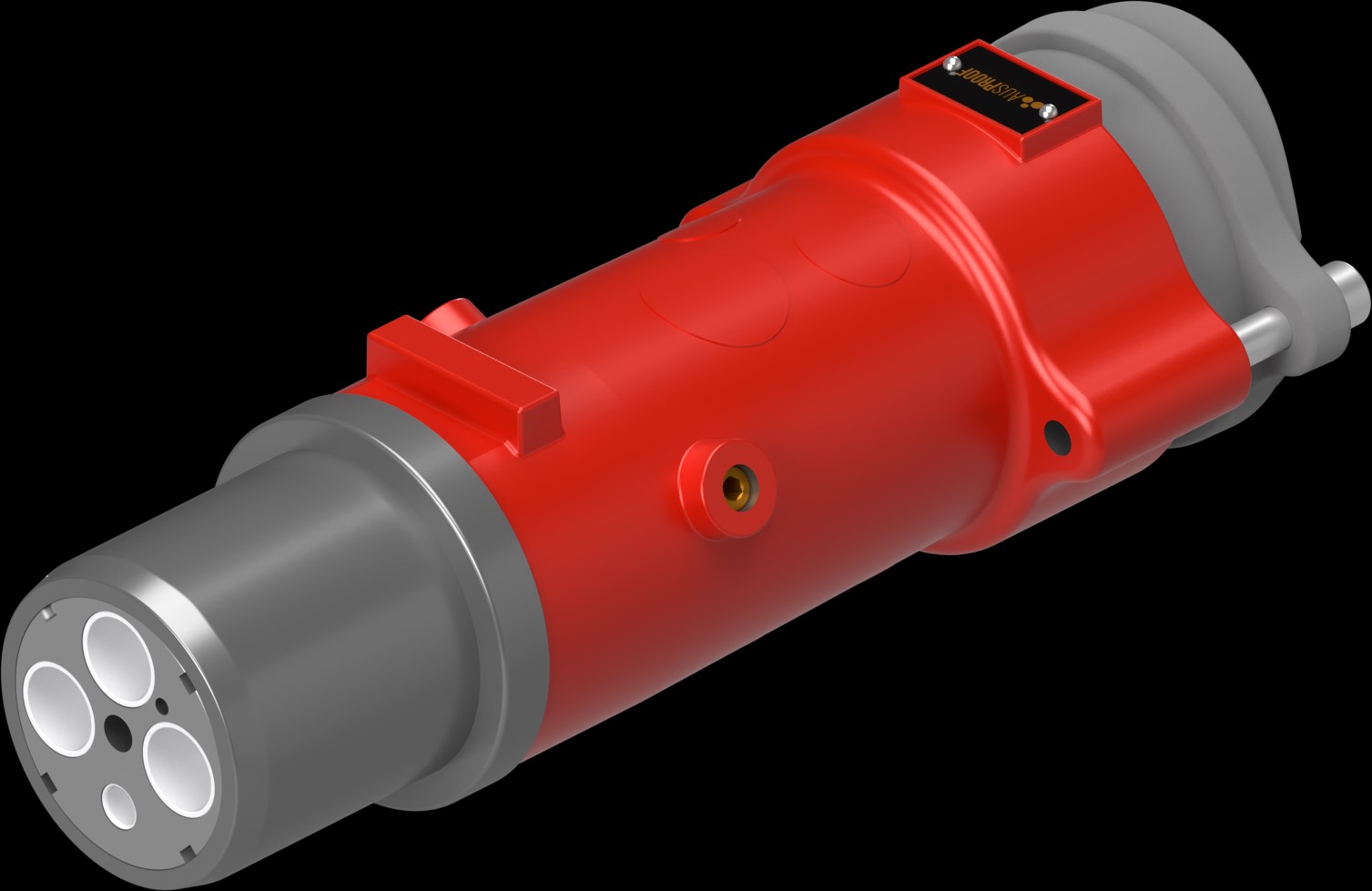

4 Pin Plug 300A | 660V to 3300V | IP55 Rated | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS1523

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

This 4 pin plug with a 300A current rating and voltage range of 660V to 3300V is ideal for mining and tunnelling applications. Built for hazardous environments, it features quick release and stainless steel construction for durability and easy maintenance.

Description

Product Name/Title: PL 3300V 300A 4 Pin Plug (270) 50-C 50-55-G (241.3)

Brand: Ausproof

SKU: RS1523

Alternatively Known As: Ex-certified 4 Pin Plug, Mining Plug, Flameproof Plug, Heavy Duty Industrial Plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 9.0 kg
Dimensions (H x L x W): 250mm x 300mm x 200mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment in Hazardous Areas

Environmental Benefits

Durable stainless steel construction reduces waste and extends product life.
Easy flameproof repair reduces need for full replacements, minimizing material waste.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL 3300V 300A 4 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
