Home/Electrical/Industrial/Switching And Control/Starting Equipment/4 Pin Plug 300A | IP55 Ingress Protection | Quick Release Mechanism & Stainless Steel | Ausproof

Trade Discount 19%

PL 1100V 300A 4 Pin Plug (90) 120-C 60-65-G (241.1)

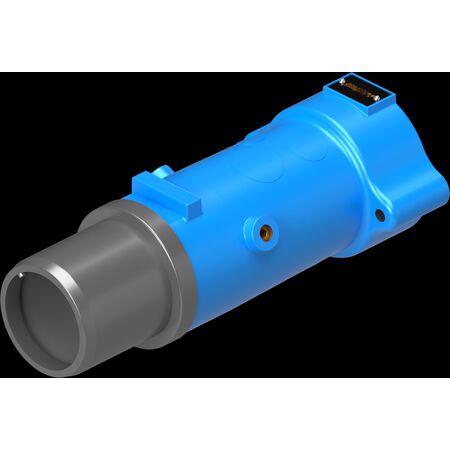

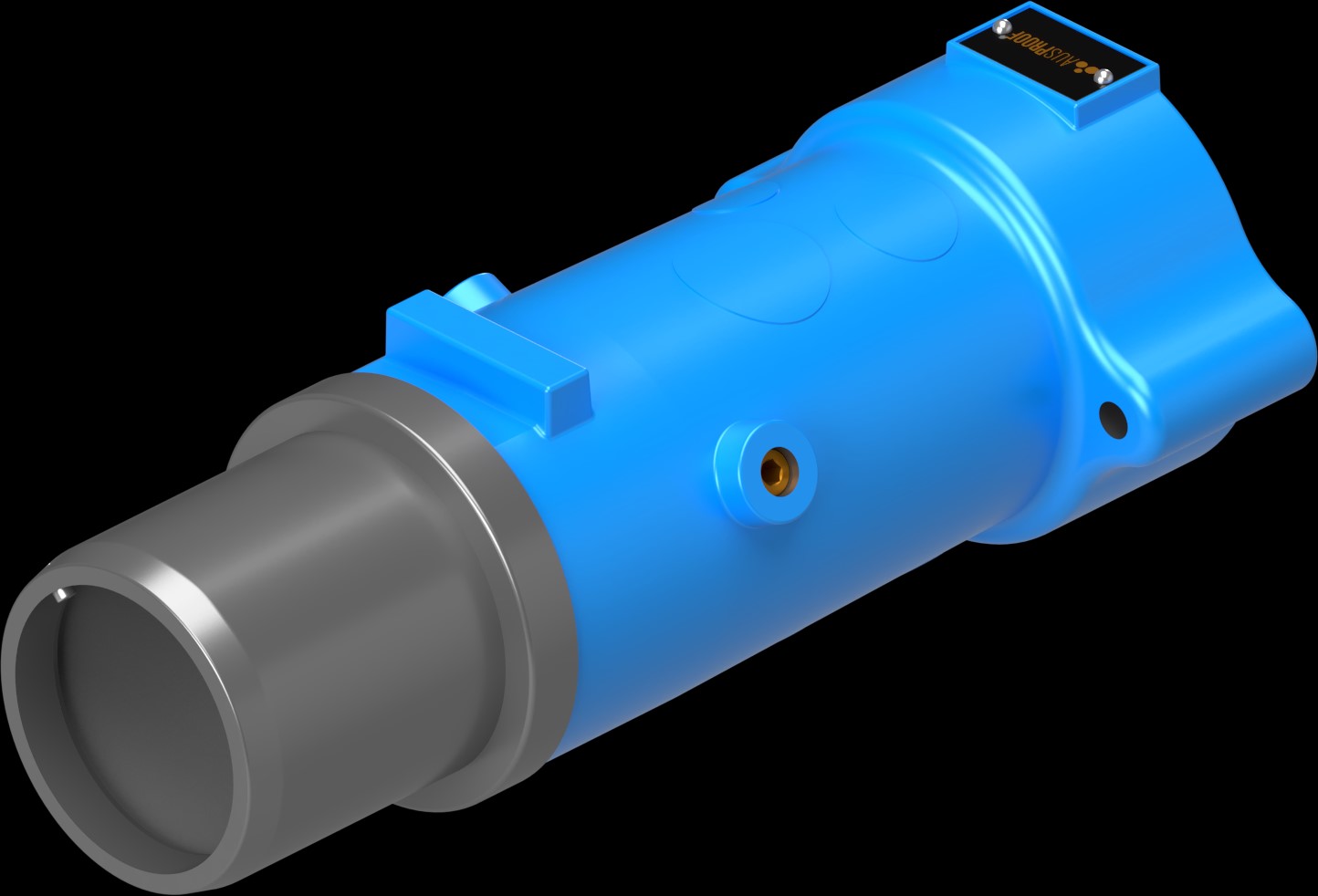

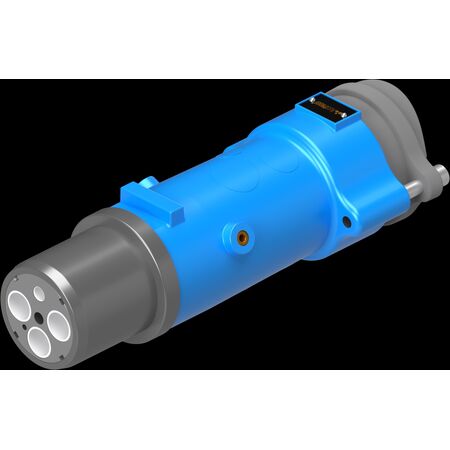

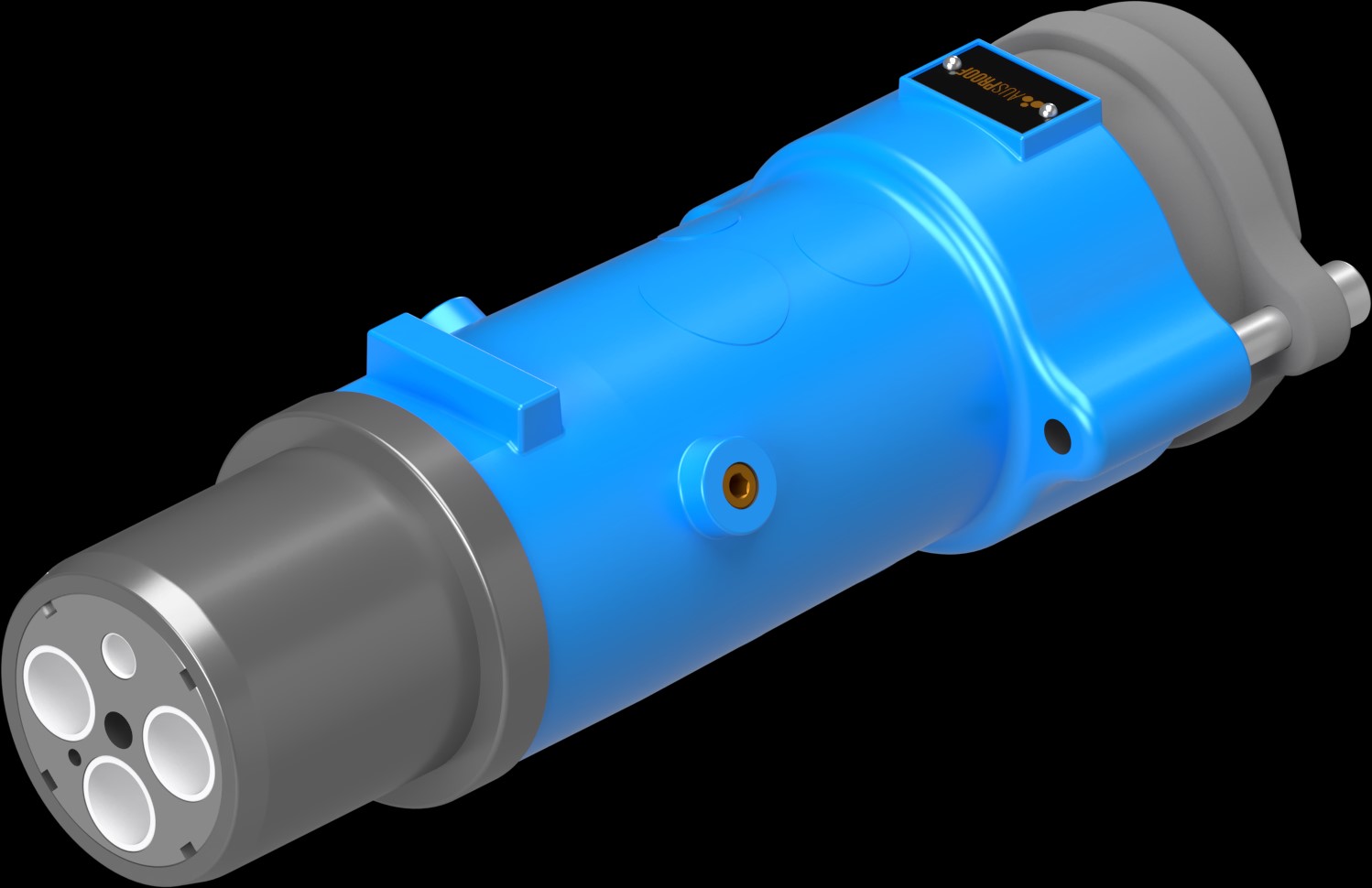

4 Pin Plug 300A | IP55 Ingress Protection | Quick Release Mechanism & Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS1454

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

This 4 pin plug with a 300A current rating and IP55 ingress protection is ideal for mining and hazardous commercial applications. Built for durability with a quick release mechanism and stainless steel construction, it ensures robust and flameproof electrical connections.

Description

Product Name/Title: PL 1100V 300A 4 Pin Plug (90) 120-C 60-65-G (241.1)

Brand: Ausproof

SKU: RS1454

Alternatively Known As: Ex-certified 4 Pin Plug, Flameproof Industrial Plug, Mining Electrical Plug, Hazardous Area Plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Dimensions (H x L x W): 200mm x 250mm x 150mm
Weight: 9.0 kg

Key Features

Quick Release mechanism
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with hazardous area electrical equipment to ensure compliance with safety standards.

Applications

Mining and tunnelling operations
Commercial applications in Group 1 hazardous environments
Industrial low voltage electrical connections requiring flameproof plugs

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof repairable design minimizes waste by allowing on-site body casting replacement

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PL 1100V 300A 4 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
