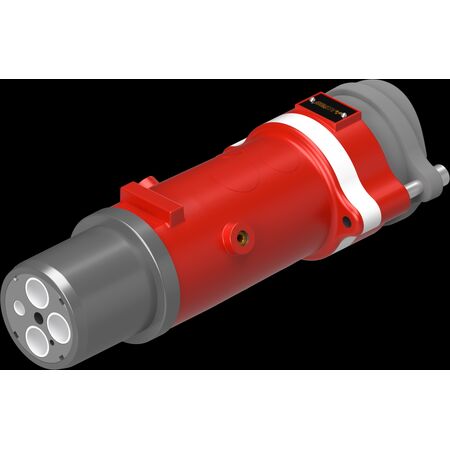

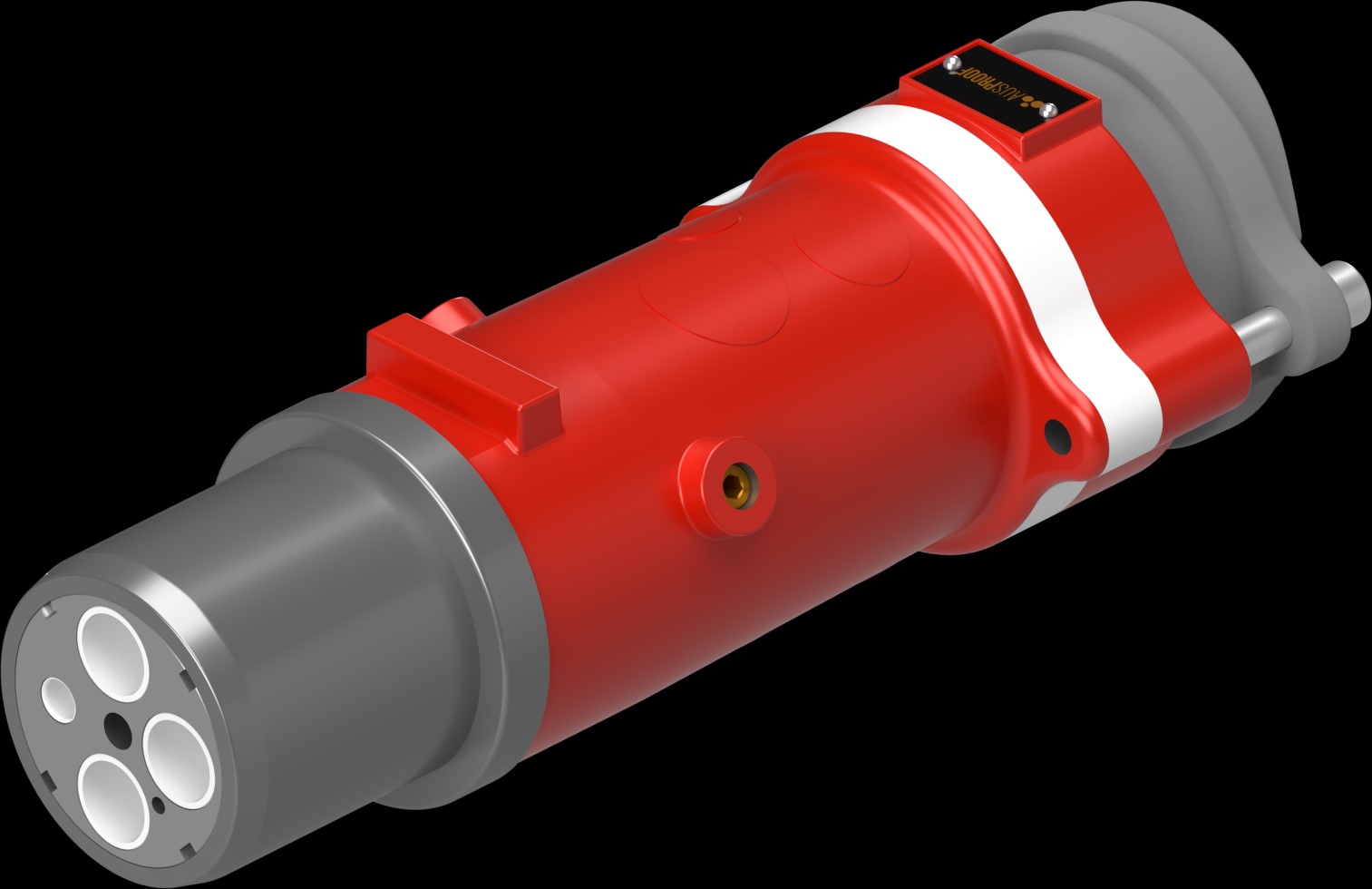

4 Pin Plug 3300V 425A | IP55 Rated | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof
SKU: RS1557
$1,482.30 List price: $1,841.00
+ −
30 Days Return Delivery Options
This 4 pin plug operates at 3300V with a 425A current rating, featuring IP55 protection and quick release functionality—ideal for mining and hazardous environments. Built for commercial applications, its durable stainless steel construction ensures longevity and easy on-site repairs.

Product Name/Title: PL 3300V 425A 4 Pin Plug (180) 25-C 45-50-G (241.3)

Brand: Ausproof

SKU: RS1557

Alternatively Known As: Ex-certified 4 Pin Plug, Mining Plug, Flameproof Plug, Stainless Steel Industrial Plug

Technical Specifications
  • Voltage Range: 660V to 3300V
  • Current Rating: 425A
  • Material: Stainless Steel
  • Ingress Protection: IP55
  • Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
  • Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
  • AC HV Withstand (Phase): 8.6kV for one minute
  • AC HV Withstand (Pilot): 1.0kV for one minute
  • Temperature Rise: Rated for 300A and 425A
  • Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
  • Dimensions (H x L x W): 180mm x 180mm x 180mm
  • Weight: 9.0 kg
Key Features
  • Quick Release
  • Single piece contacts to prevent hot joints
  • Easy termination
  • Easy flameproof repair
  • Full solid earth connectivity throughout product
  • Full phase to phase segregation with earth
  • Lightest Ex product on the market
  • Silicone Protection Cover
  • Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
  • Installation should be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.
Applications
  • Mining
  • Tunnelling
  • Commercial applications
  • Group 1 hazardous environments
Standards & Compliance
  • Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
  • Durable stainless steel construction reduces need for frequent replacements.
  • Easy on-site repair reduces waste and downtime.
Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 3300V 425A 4 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
