Home/Electrical/Industrial/Industrial Outlets/4 Pin Plug 425A 1100V | IP55 Rated | Quick Release & Stainless Steel | Ausproof

Trade Discount 19%

PL 1100V 425A 4 Pin Plug (180) 16-C 35-40-G (241.1)

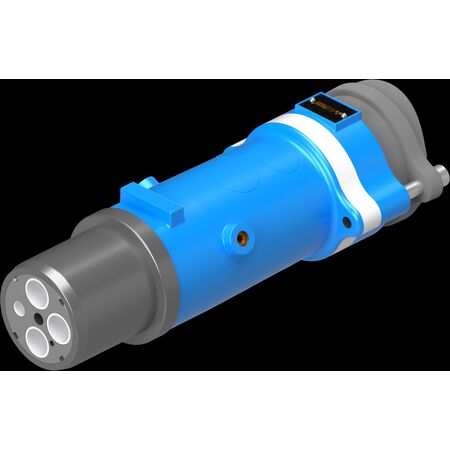

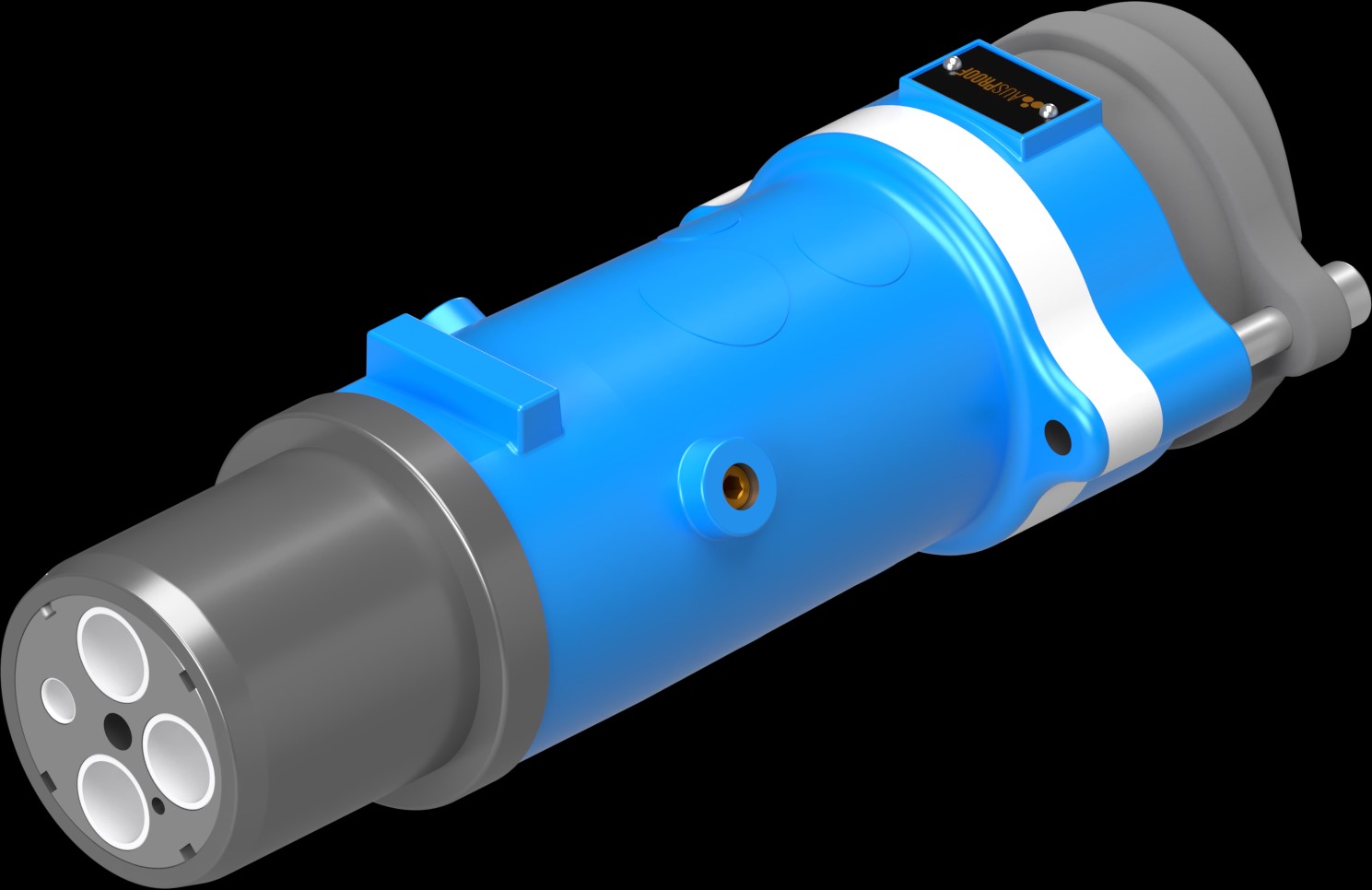

4 Pin Plug 425A 1100V | IP55 Rated | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS1484

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

4 Pin Plug with 425A current rating and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and durability, featuring quick release and stainless steel construction for easy installation and flameproof repair.

Description

Product Name/Title: PL 1100V 425A 4 Pin Plug (180) 16-C 35-40-G (241.1)

Brand: Ausproof

SKU: RS1484

Alternatively Known As: Ex-certified 4 Pin Plug, Flameproof Industrial Plug, Mining Electrical Plug, Hazardous Area Plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 9.0 kg (Plug), 10.7 kg (Receptacle)
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 180mm x 180mm x 180mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste and extends product life.
Easy flameproof repair reduces need for full replacements, minimizing material waste.

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PL 1100V 425A 4 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
