Making Trade Life Easy!

Home/Electrical/Accessories/Leads & Powerboards/Flex & Plugs/4 Pin Plug 425A | 660V to 3300V | IP55 Ingress Protection | Stainless Steel by Ausproof

Trade Discount 19%

PL 1100V 425A 4 Pin Plug (180) 150-C 65-70-G (241.1)

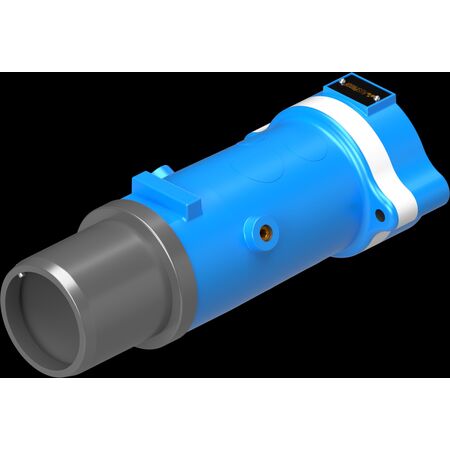

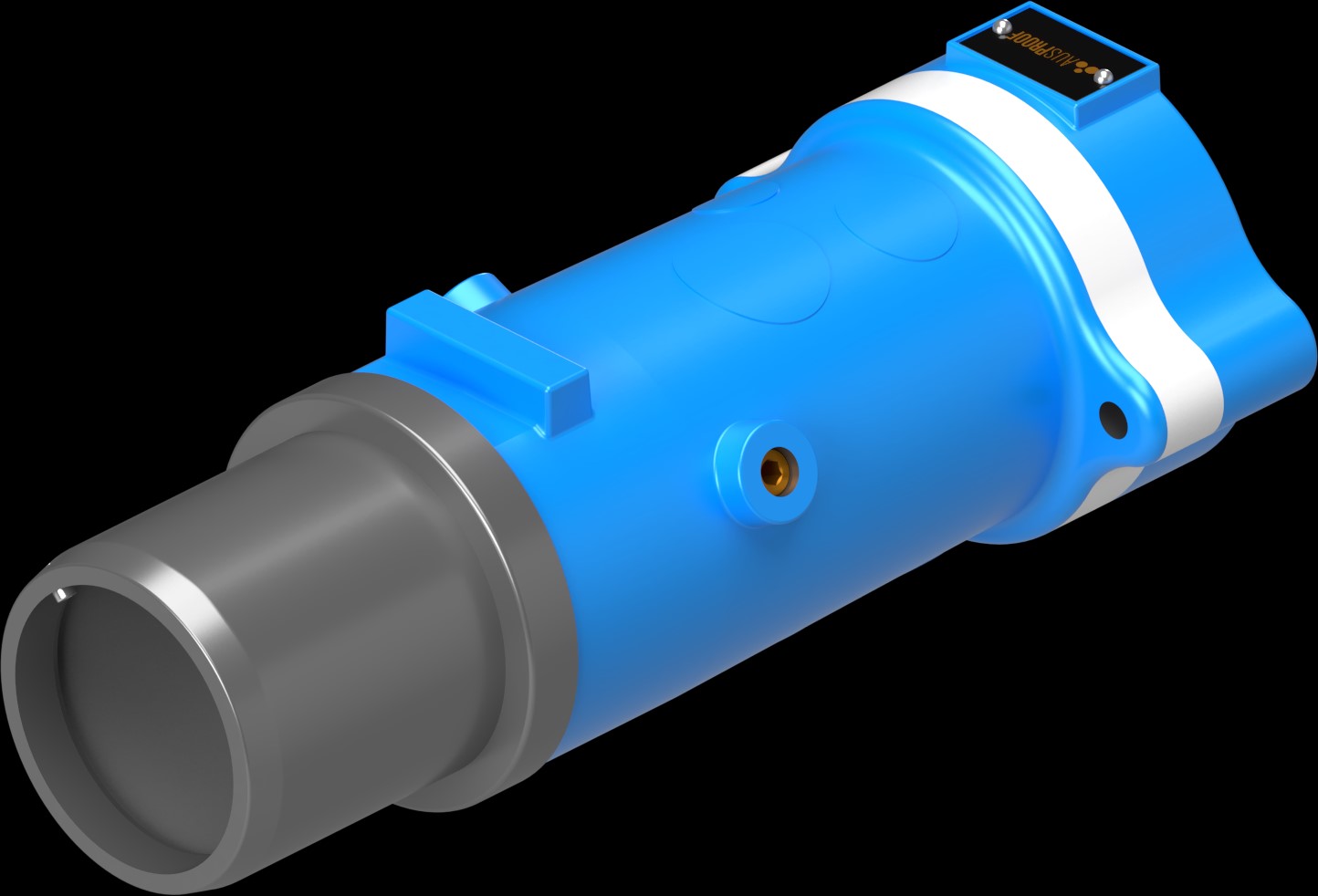

4 Pin Plug 425A | 660V to 3300V | IP55 Ingress Protection | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS1491

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

This 4 pin plug with a 425A current rating and 660V to 3300V operating voltage is ideal for mining and hazardous environments. Built for durability with stainless steel construction and IP55 ingress protection, it ensures safety and reliability in demanding applications.

Description

Product Name/Title: PL 1100V 425A 4 Pin Plug (180) 150-C 65-70-G (241.1)

Brand: Ausproof

SKU: RS1491

Alternatively Known As: PL 1100V 425A 4 Pin Plug, Ex-certified mining plug, Flameproof industrial plug, Stainless steel hazardous area plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 70mm x 241.1mm x 180mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 - Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy on-site flameproof repair minimizes waste and downtime.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 1100V 425A 4 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
