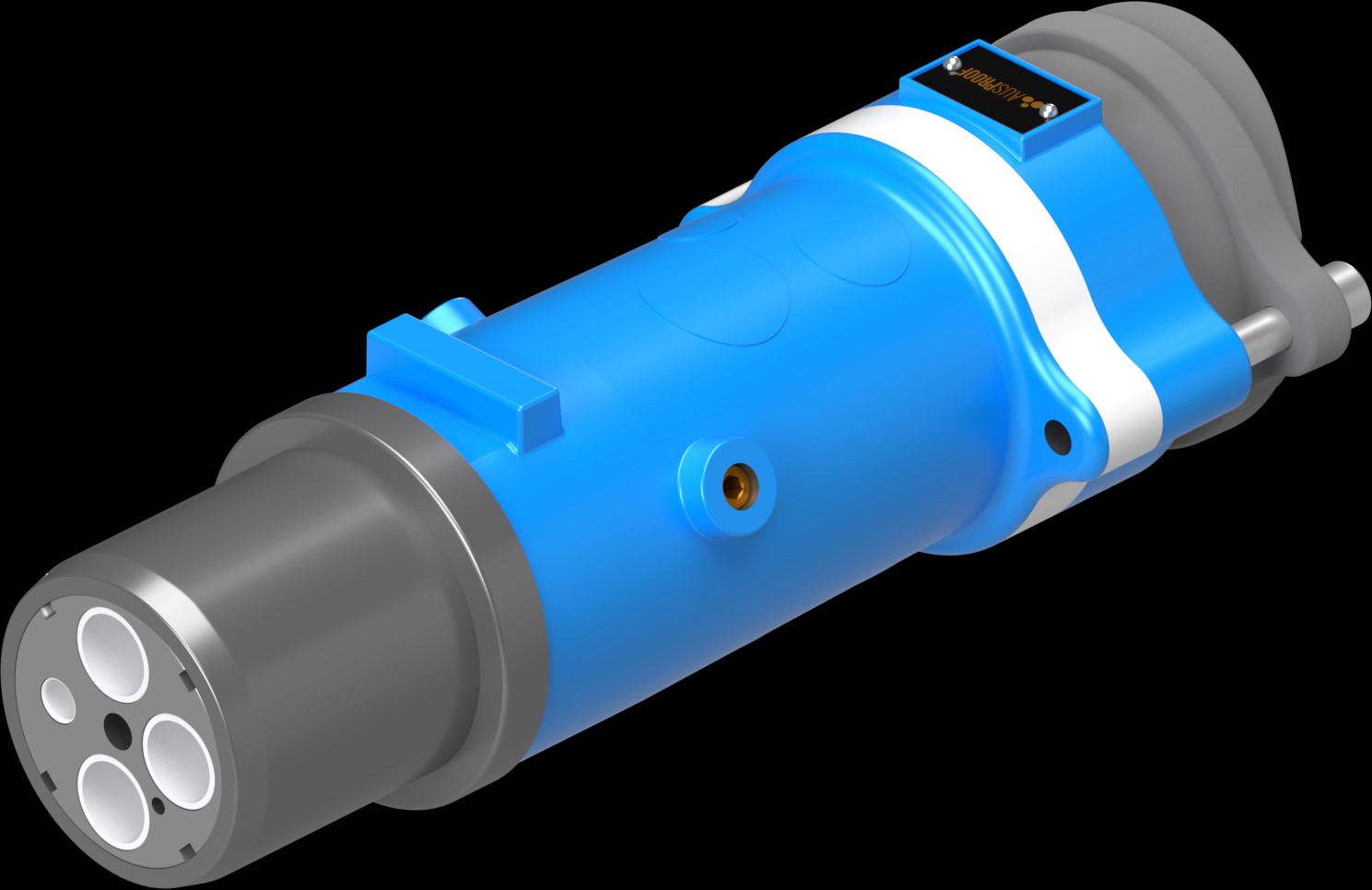

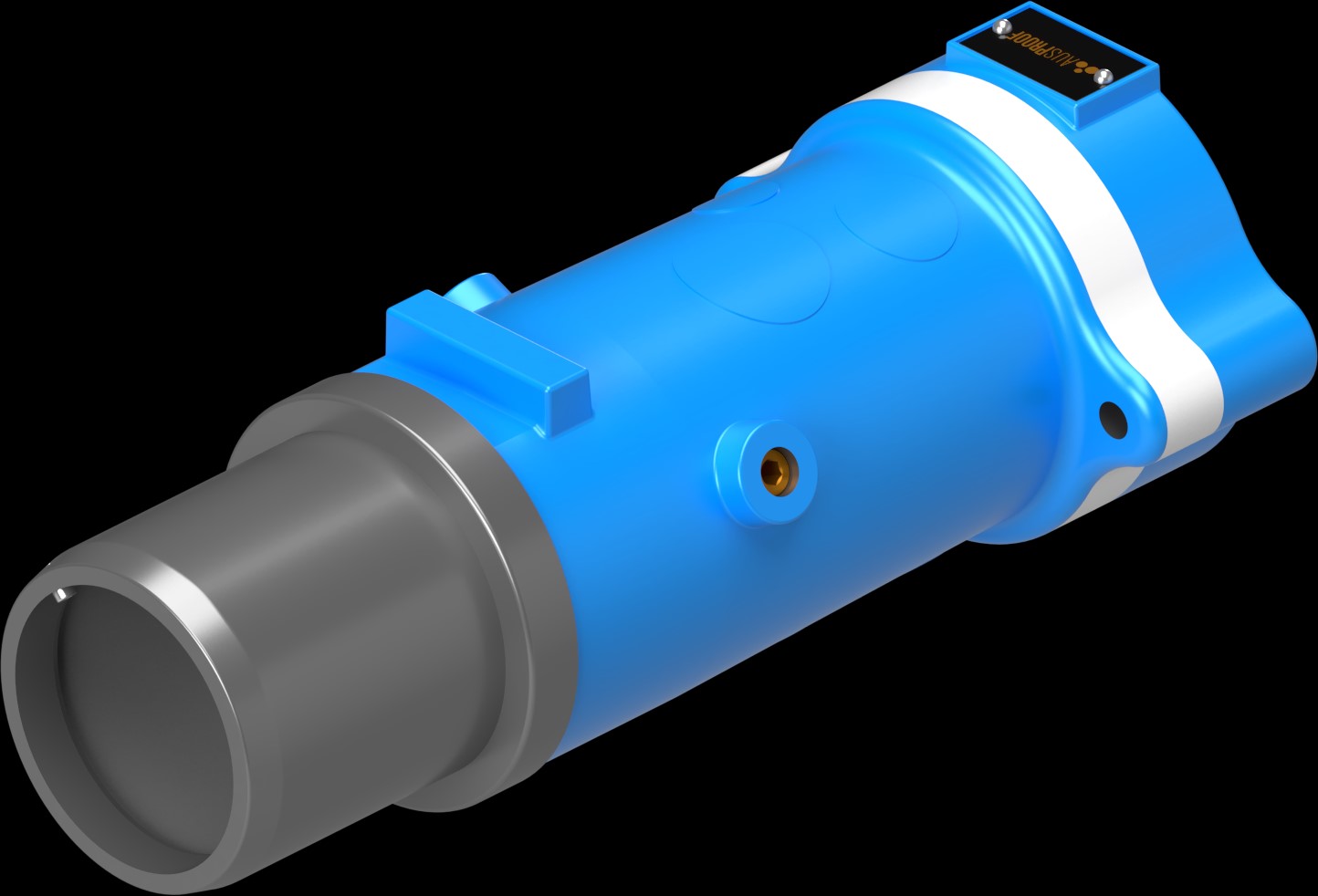

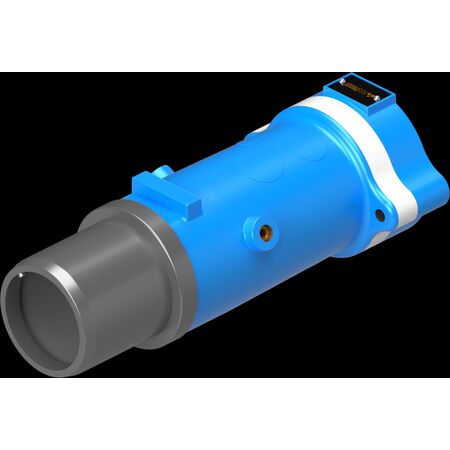

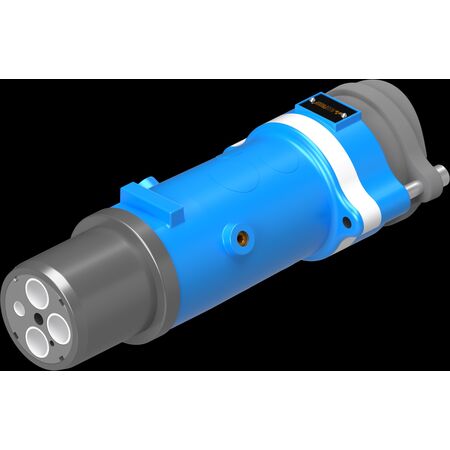

4 Pin Plug 425A | 660V to 3300V | IP55 Ingress Protection | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS1492

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

This 4 pin plug with a 425A current rating and IP55 ingress protection is ideal for mining and tunnelling applications. Built for hazardous environments, it features durable stainless steel construction and quick release for easy installation.

Description

Product Name/Title: PL 1100V 425A 4 Pin Plug (180) 185-C 70-75-G (241.1)

Brand: Ausproof

SKU: RS1492

Alternatively Known As: Ex-certified 4 Pin Plug, Heavy Duty Mining Plug, Flameproof Electrical Plug, Stainless Steel Industrial Plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 9.0 kg
Dimensions (H x L x W): 180mm x 180mm x 180mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste by allowing on-site body casting replacement.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL 1100V 425A 4 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
