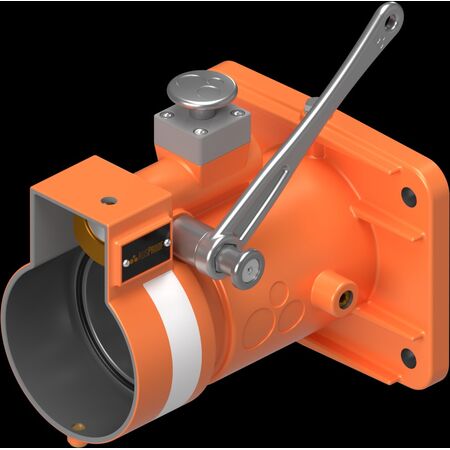

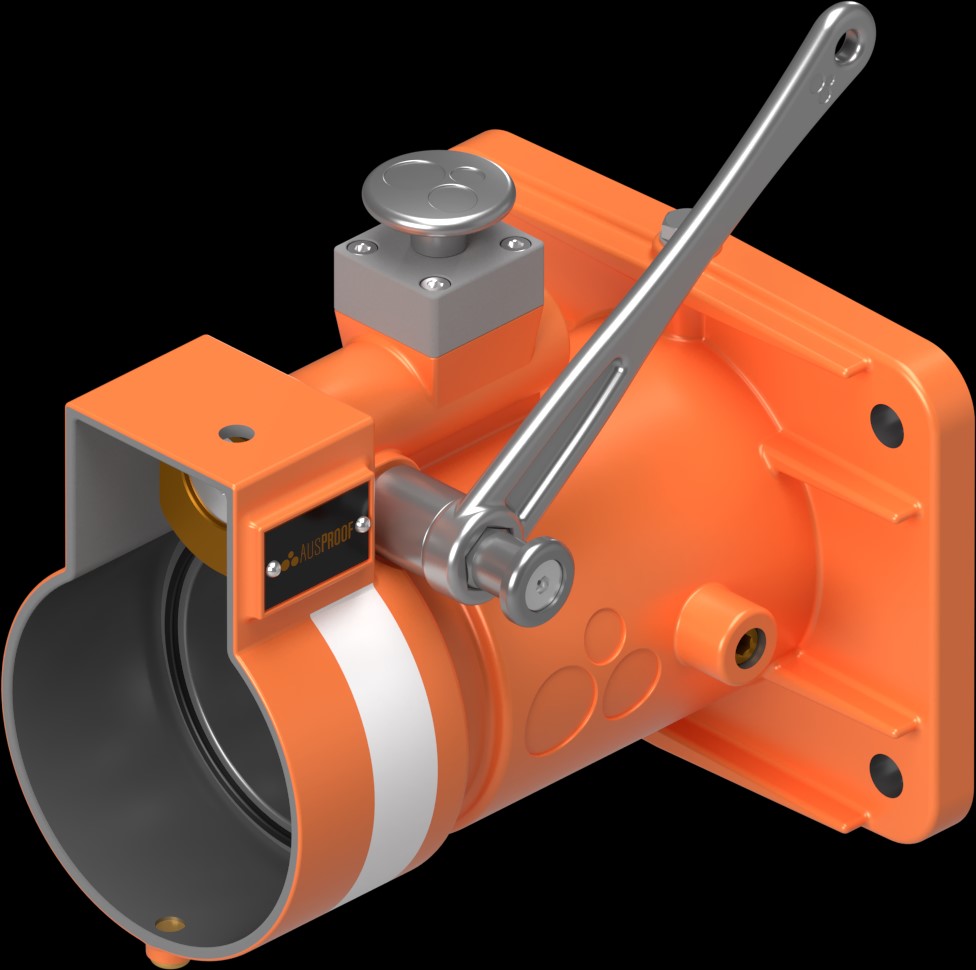

4 Pin Receptacle 660V 425A | IP55 Rated | Quick Release & Stainless Steel by Ausproof
4 Pin receptacle with 660V voltage range and 425A current rating—ideal for mining and hazardous environments. Built for safety and durability, featuring quick release and IP55 ingress protection for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 660V 425A 4 Pin Receptacle (180) 95-C
Brand: Ausproof
SKU: RS1444
Alternatively Known As: PL Range 4 Pin Receptacle, Ex-certified 425A Receptacle, Mining Grade 4 Pin Plug Receptacle
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Dimensions (H x L x W): 180mm x 180mm x 180mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
- Flameproof repairable design reduces environmental impact by allowing on-site repairs instead of full replacements.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 660V 425A 4 Pin Receptacle is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
