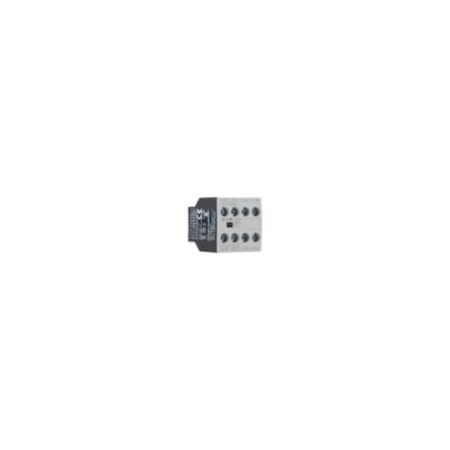

4 Pole Auxiliary Contact Module | 16A Rated Current | IP20 Protection | Front Mounting by Eaton
The DILA-XHI04 is a 4 pole auxiliary contact module with 16A rated current and IP20 protection—ideal for industrial control panels and automation systems. Built for reliable performance, it features a high mechanical lifespan of up to 10 million operations and secure front mounting with screw terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Pole Auxiliary Contact Module | 16A Rated Current | IP20 Protection | Front Mounting by Eaton
Brand: Eaton
SKU: Y7-276424
Alternatively Known As: DILA Auxiliary Contact Module, Eaton DILA-XHI04, 4 Pole Auxiliary Contact, DILM Auxiliary Contact Module
Technical Specifications
- Number of poles: 4
- Contact configuration: 4 normally closed (NC)
- Rated thermal current (Ith): 16 A
- Rated operational current (Ie) at AC-15, 220-240 V: 4 A
- Rated insulation voltage (Ui): 690 V
- Rated operational voltage (Ue) max AC: 500 V
- Degree of protection: IP20
- Operating temperature range: -25 °C to 60 °C
- Mechanical lifespan: 10,000,000 operations
- Electrical lifespan: 1,300,000 operations at 230 V AC-15, 3 A
- Connection type: Screw terminals
- Mounting method: Front fastening
- Shock resistance: 5 g (N/C contacts), 7 g (N/O contacts)
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Pollution degree: 3
- Overvoltage category: III
- Terminal capacity: 0.75 - 2.5 mm²
- Tightening torque: 1.2 Nm
- Dimensions (H x L x W): 38mm x 45mm x 36mm
- Weight: 0.049 kg
Key Features
- Four-pole auxiliary contact module with 4 normally closed contacts
- Interlocked opposing contacts according to IEC 60947-5-1 Annex L
- Front mounting with screw terminals for secure connection
- IP20 degree of protection
- High mechanical and electrical lifespan with up to 10 million mechanical operations
- Rated operational current up to 4 A at AC-15
- Shock resistance compliant with IEC/EN 60068-2-27
- Protection against direct contact from front (EN 50274)
- Operating temperature range from -25 °C to 60 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or professional experienced with industrial electrical control equipment to ensure compliance with safety standards and proper operation.
Applications
- Industrial control panels
- Electrical switchgear assemblies
- Automation systems requiring auxiliary contact monitoring
- Standard electrical applications needing auxiliary contacts
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Complies with international standards ensuring safe and efficient operation
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILA-XHI04 Auxiliary Contact Module is available for immediate purchase, ideal for industrial and automation control applications.
