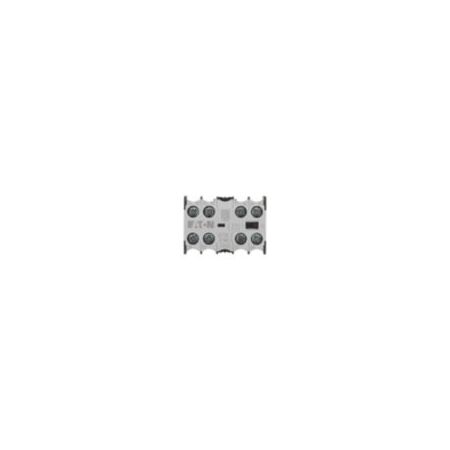

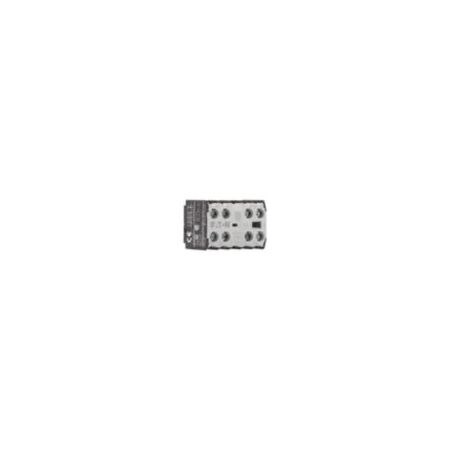

4 Pole Auxiliary Contact Module | 2 N/O & 2 N/C Contacts | Front Fastening | 600V by Eaton
This 4 pole auxiliary contact module features 2 normally open and 2 normally closed contacts, making it ideal for industrial control panels and automation systems. Built for reliable performance with a high mechanical lifespan of up to 20 million operations, it ensures secure connections with front fastening screw terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Pole Auxiliary Contact Module | 2 N/O & 2 N/C Contacts | Front Fastening | 600V by Eaton
Brand: Eaton
SKU: Y7-10288
Alternatively Known As: Auxiliary contact block, DILE auxiliary contact module, Eaton DILE contact accessory, 4 pole auxiliary contact
Technical Specifications
- Number of poles: 4
- Contact configuration: 2 normally open (N/O), 2 normally closed (N/C)
- Mounting method: Front fastening
- Electrical connection type: Screw connection
- Rated operational voltage (Ue): 600 V AC max
- Rated insulation voltage (Ui): 690 V
- Rated operational current (Ie): 2.5 A at 60 V DC, 4 A at AC-15 220-240 V
- Mechanical lifespan: Up to 20,000,000 operations (DC operated)
- Operating frequency: 9000 operations/hour
- Overvoltage category: III
- Pollution degree: 3
- Protection: Finger and back-of-hand proof (EN 50274)
- Shock resistance: 10 g mechanical shock
- Ambient operating temperature: -25 °C to 50 °C
- Terminal capacity (flexible with ferrule): 2 x (0.75 - 1.5) mm²
- Tightening torque: 1.2 Nm
- Dimensions (H x L x W): 32mm x 36mm x 45mm
- Weight: 0.04 kg
Key Features
- 4 pole auxiliary contact module with 2 normally open and 2 normally closed contacts
- Front fixing with screw terminals for secure connection
- Interlocked opposing contacts according to IEC 60947-5-1 Annex L
- High mechanical lifespan with up to 20 million operations (DC operated)
- Protection against direct contact from front (EN 50274)
- Rated operational voltage up to 600 V AC and insulation voltage 690 V
- Shock resistance compliant with IEC/EN 60068-2-27
- Suitable for ambient temperatures from -25 °C to 50 °C
Professional Installation Requirements
- Installation by a qualified electrician or panel builder is required to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Industrial control panels
- Electrical switchgear assemblies
- Automation systems requiring auxiliary contact modules
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Complies with international standards ensuring safe and efficient operation
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton Moeller series DILE Auxiliary contact module is available for immediate purchase, ideal for industrial and automation control applications.
