4 Pole Cam Switch | 12A Changeover | Panel Mount | IP20 by NHP
4 pole cam switch with 12A changeover capability and panel mount design—ideal for industrial and commercial electrical applications. Built for versatile switching, with IP20 protection and easy front mounting.
Sign in
Please login to continue to your account.

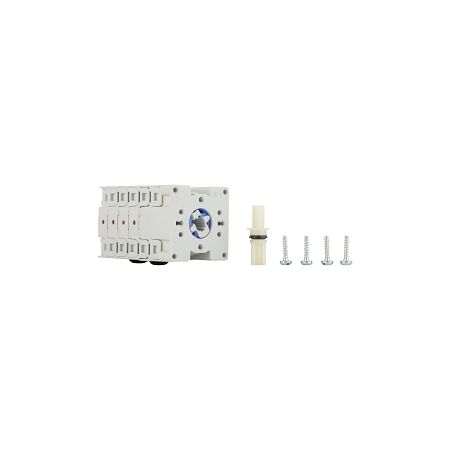

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 4 Pole Changeover 12A Panel Mount
Brand: NHP
SKU: LE2122504
Alternatively Known As: 4 Pole Cam Switch, Changeover Switch, Panel Mount Switch
- Rated operation power at AC 3 400 V: 4 kW
- Rated operation current at AC 15 230 V: 5 A
- Rated operation current at AC 15 400 V: 3 A
- Rated operation current at AC 22A 690 V: 12 A
- Rated operation current at AC 22A 220-500 V: 12 A
- Rated operation current at AC 21A 690 V: 12 A
- Rated operation current at AC 1 690 V: 12 A
- Thermal current enclosed: 12 A
- Thermal current open: 16 A
- Type of electrical connection of main circuit: Screw connection
- Material housing: Plastic
- Degree of protection: IP20
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 74mm x 42mm
- Weight: 0.5 kg
- 4 pole changeover design for versatile switching applications.
- Rated for 12A operation, suitable for various electrical loads.
- Front mounting for easy installation.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Machinery control and power distribution
- Commercial: Electrical panels and switchboards
- Complies with AS/NZS 3000 for electrical installation safety.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Sprecher and Schuh L2 Cam Switch Switch Body 4 Pole Changeover 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
