4 Pole Cam Switch with Off | 12A Panel Mount | IP20 Protection by NHP
4 pole cam switch with off position and 12A rating—ideal for industrial control panels and machinery isolation. Built for reliable changeover, with panel mount design and IP20 front protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

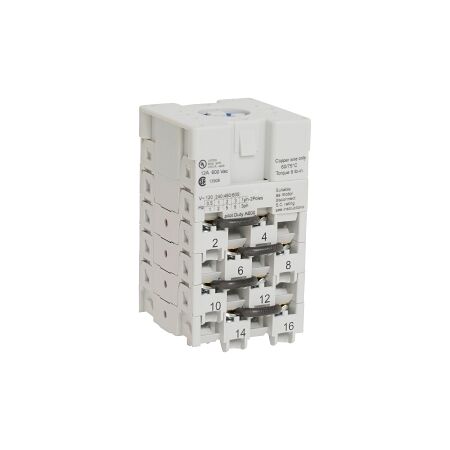

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 4 Pole Changeover with Off 12A Panel Mount
Brand: NHP
SKU: LE2123504
Alternatively Known As: ['4 Pole Cam Switch', 'Changeover Switch with Off', 'Panel Mount Cam Switch', 'Sprecher Schuh Cam Switch', 'NHP Cam Switch']
Technical Specifications
- Number of Poles: 4
- Rated Operation Power at AC-3 400V: 4 kW
- Rated Operation Current (AC-15 230V): 5 A
- Rated Operation Current (AC-15 400V): 3 A
- Rated Operation Current (AC-22A 690V): 12 A
- Rated Operation Current (AC-22A 220-500V): 12 A
- Rated Operation Current (AC-21A 690V): 12 A
- Rated Operation Current (AC-1 690V): 12 A
- Thermal Current (Enclosed): 12 A
- Thermal Current (Open): 16 A
- Electrical Connection: Screw connection
- Mounting Method: Front mounting
- Material (Housing): Plastic
- Wire Conductor Size (Rigid/Flex): 1-2.5 mm²
- Degree of Protection (Front): IP20
- Mechanical Life: 1,000,000 cycles
- Number of Switch Positions: 3
- Operating Temperature: -25°C to 60°C
- Dimensions (H x L x W): 42mm x 74mm x 42mm
- Weight: 0.25 kg
Key Features
- 4 pole changeover switch with off position
- Rated operational current up to 12A at 690V
- Panel/front mounting for easy installation
- Screw connection terminals for secure wiring
- IP20 protection on front side
- Mechanical life of 1,000,000 cycles
- Suitable for rigid and flexible cables (1-2.5 mm²)
- Robust plastic housing
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian standards and safe operation.
Applications
- Industrial control panels
- Machinery and equipment isolation
- Switchboards
- Changeover and off-load switching in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long mechanical life reduces replacement frequency and waste
- Reliable operation minimizes downtime and energy loss
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for industrial and commercial control panels requiring reliable changeover and isolation switching.
