4 Pole Contactor 80A | 120V AC Coil | 2NO+2NC | IP20 by Clipsal
4 pole contactor with 80A operational current and 120V AC coil—ideal for motor control and automation systems. Built for industrial and commercial use, with IP20 protection and high durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

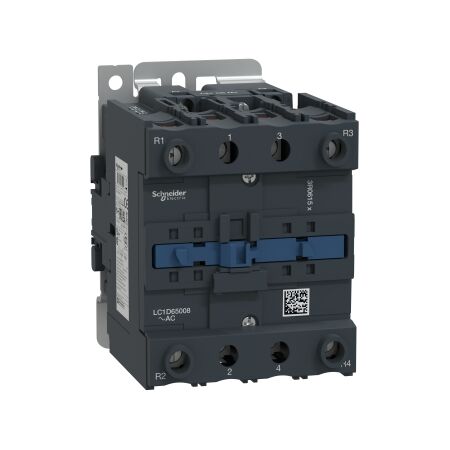

Product Name/Title: TeSys D, Contactor, 4P(2NO+2NC),AC-1 <=440V 80 A 120V AC 50/60Hz coil
Brand: Clipsal
SKU: LC1D65008G7
Alternatively Known As: TeSys Contactor, 4 Pole Contactor, AC Contactor, Motor Contactor
Technical Specifications
- Rated operational voltage: <= 690V AC, 25...400Hz; <= 300V DC.
- Control circuit voltage: 120V AC, 50/60Hz.
- IP degree of protection: IP20.
- Rated insulation voltage: 600V CSA certified, 690V IEC certified.
- Rated short-time withstand current: 640A for 10s at 40°C.
- Dimensions (H x L x W): 127mm x 125mm x 85mm
- Weight: 1.45 kg
Key Features
- 4 poles with 2 normally open and 2 normally closed contacts.
- Rated operational current of 80A at <= 440V AC.
- Mechanical durability of 6 million cycles.
- Electrical durability of 1.4 million cycles at 80A AC-1.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control, automation systems
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with CSA C22.2 No 14, EN 60947-4-1, IEC 60947-4-1.
Environmental Benefits
- Packaging made with recycled cardboard.
- PVC free.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.
