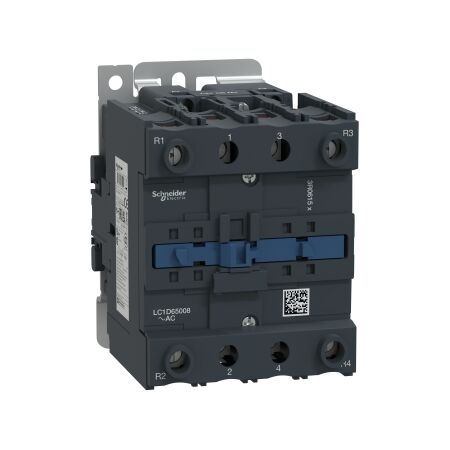

4 Pole Contactor 80A | 240V AC Coil | IP20 Rated | TeSys D by Clipsal
4 pole contactor with 80A current and 240V AC coil—ideal for motor control and automation systems. Built for industrial and commercial use, with IP20 protection and high mechanical durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys D, Contactor, 4P(2NO+2NC), AC-1 <=440V 80 A 240V AC 50/60Hz coil
Brand: Clipsal
SKU: LC1D65008U7
Alternatively Known As: TeSys Contactor, 4 Pole Contactor, AC Contactor
Technical Specifications
- Rated operational voltage: <= 690 V AC, 25...400 Hz; <= 300 V DC.
- Rated insulation voltage: 600 V CSA certified, 690 V conforming to IEC 60947-4-1.
- IP degree of protection: IP20.
- Control circuit voltage: 240 V AC 50/60 Hz.
- Inrush power: 140 VA at 60 Hz, 160 VA at 50 Hz.
- Hold-in power consumption: 13 VA at 60 Hz, 15 VA at 50 Hz.
- Dimensions (H x L x W): 127mm x 125mm x 85mm
- Weight: 1.45 kg
Key Features
- 4 poles with 2 normally open and 2 normally closed contacts.
- Rated operational current of 80 A at <= 440 V AC.
- Mechanical durability of 6 million cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control, automation systems
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with CSA C22.2 No 14, EN 60947-4-1, IEC 60947-4-1.
Environmental Benefits
- Packaging made with recycled cardboard.
- PVC free.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial and commercial applications.
