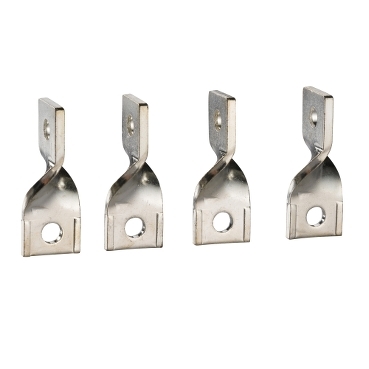

4-Pole Edgewise Terminal Extension Bar | NSX100-250 Compatibility | High-Conductivity Copper | by Clipsal
The 4-Pole Edgewise Terminal Extension Bar is designed for NSX100 to NSX250 circuit breakers, facilitating secure connections for multiple conductors. Made from high-conductivity copper with insulation, it ensures reliable performance in electrical distribution boards and switchboards, making it ideal for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4-Pole Edgewise Terminal Extension Bar | NSX100-250 Compatibility | High-Conductivity Copper | by Clipsal
Brand: Clipsal
SKU: SCHLV429309
Alternatively Known As: 4 pole terminal extension bar, NSX terminal bar, edgewise extension bar, SCHLV429309, Clipsal terminal bar
Technical Specifications
- Type: 4-pole edgewise terminal extension bar
- Compatibility: For NSX100 to NSX250 circuit breakers
- Material: High-conductivity copper with insulation
- Mounting: Panel mount
- Current Rating: Suitable for NSX100-250 rated currents
- Connection: Edgewise terminal design for multiple conductors
- Dimensions (H x L x W): 25mm x 120mm x 30mm
- Weight: 0.25 kg
Key Features
- 4-pole edgewise terminal extension bar
- Designed for NSX100 to NSX250 circuit breakers
- Facilitates easy and secure connection of multiple conductors
- Robust construction for reliable performance
- Supports safe and efficient power distribution
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Electrical distribution boards
- Switchboards in commercial and industrial settings
- Panel building for circuit breaker extension
- Retrofitting and upgrading existing installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient use of electrical panels, reducing material waste.
- Supports safe and reliable electrical connections, minimizing energy loss.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now

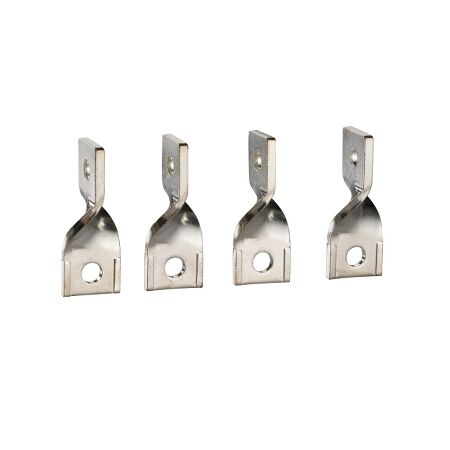

The Clipsal 4 EDGEWISE Terminal Extension PH Bar SCHLV429309 is available for immediate purchase. Ideal for commercial and industrial switchboard applications requiring secure multi-conductor connections.
