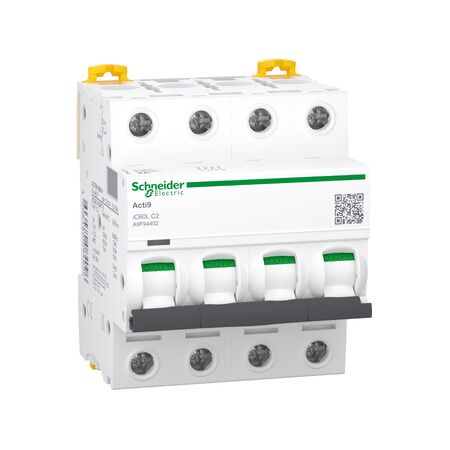

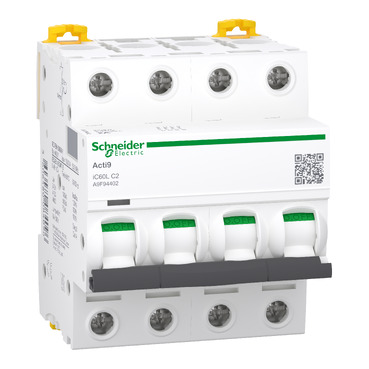

4 Pole Miniature Circuit Breaker | 2A Rated Current | C Curve Tripping | High Breaking Capacity | @Pack of 1 | by Clipsal
The 4 Pole Miniature Circuit Breaker (MCB) is designed for comprehensive circuit protection with a 2A rated current and C curve tripping characteristics. Ideal for residential and commercial electrical distribution boards, this Clipsal MCB ensures high breaking capacity and reliable operation, making it perfect for protecting lighting and power circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Pole Miniature Circuit Breaker | 2A Rated Current | C Curve Tripping | High Breaking Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9F94402
Alternatively Known As: 4 Pole MCB, 2A Miniature Circuit Breaker, Clipsal iC60L 4P 2A, SCHA9F94402, Acti9 4P C Curve MCB
Technical Specifications
- Type: Miniature Circuit Breaker (MCB)
- Poles: 4
- Rated Current: 2A
- Tripping Curve: C
- Breaking Capacity: 6kA at 230/400V AC
- Rated Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standards: IEC/EN 60898-1
- Terminal Capacity: 1-25mm²
- Operating Temperature: -25°C to +70°C
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- 4-pole miniature circuit breaker for comprehensive circuit protection
- 2A rated current with C curve tripping characteristics
- High breaking capacity for reliable operation
- Compact modular design for easy installation
- Clear ON/OFF indication for safety and maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Protection of lighting and power circuits
- Switchboards requiring 4-pole circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Electrical accessories – Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ACTI9 MCB 4P C 2A SCHA9F94402 is available for immediate purchase. Ideal for electrical distribution boards in residential, commercial, and industrial settings.
