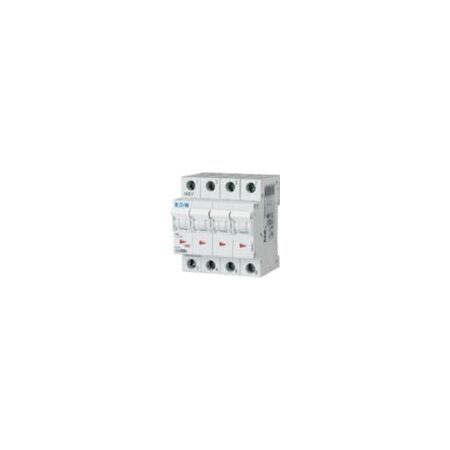

4-Pole Miniature Circuit Breaker 50A | Tripping Characteristic C | 6kA Switching Capacity | IP20 by Eaton
This 4-pole miniature circuit breaker with a rated current of 50A and tripping characteristic C is ideal for residential and commercial switchgear applications. Built for safety and efficiency, it features a 6kA rated switching capacity and IP20 protection, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4-Pole Miniature Circuit Breaker 50A | Tripping Characteristic C | 6kA Switching Capacity | IP20 by Eaton
Brand: Eaton
SKU: Y7-243092
Alternatively Known As: Eaton xPole PLS6 4-pole MCB 50A, Eaton PLS6-C50/4 Miniature Circuit Breaker, Eaton 4-pole 50 Amp Circuit Breaker
Technical Specifications
- Number of poles: 4
- Tripping characteristic: C
- Rated current (In): 50 A
- Rated operational voltage (Ue) max: 400 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Rated switching capacity (IEC/EN 60898-1): 6 kA
- Degree of protection: IP20
- Connectable conductor cross section (solid-core): 1-25 mm²
- Connectable conductor cross section (multi-wired): 1-25 mm²
- Overvoltage category: III
- Pollution degree: 2
- Heat dissipation (current-dependent): 0 W per pole
- Ambient operating temperature range: -25 °C to 75 °C
- Current limiting class: 3
- Dimensions (H x L x W): 73mm x 85mm x 70mm
- Weight: 0.48 kg
Key Features
- 4-pole miniature circuit breaker
- Tripping characteristic: C
- Rated current: 50 A
- Rated switching capacity IEC/EN 60898-1: 6 kA
- Concurrently switching N-neutral
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase results in 0.5% reduction)
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Designed for efficient electrical protection to prevent energy waste and electrical faults
Warranty Information
Warranty details are provided by Eaton and typically cover manufacturing defects; please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller series xPole PLS6-C50/4-MW miniature circuit breaker is available for immediate purchase, ideal for residential and commercial electrical switchgear applications.
