4-Pole 63A Modular Switch | Red Toggle | IP20 Rated | Hager
4-pole modular switch with 63A capacity and red toggle—ideal for industrial and commercial applications. Built for high current reliability, with IP20 protection and wide temperature range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

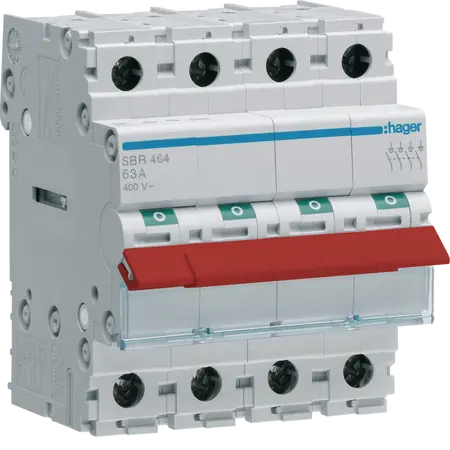

Product Name/Title: 4-pole, 63A Modular Switch 50mm² with Red Toggle
Brand: Hager
SKU: SBR464
Alternatively Known As: Modular 4-Pole Switch with Red Toggle
Technical Specifications
- Number of poles: 4
- Neutral position: Without neutral
- Type of pole: 4P
- Rated current: 63A
- Breaking capacity at 400 V AC23A: 1332A
- Rated conditional short-circuit current Icc with gl-gG fuses: 0.94 kA
- Acceptable current rating AC21 category A: 63A
- Acceptable current rating AC21 category B: 63A
- Acceptable current rating AC22 category A: 63A
- Acceptable current rating AC22 category B: 63A
- Acceptable current rating AC23 category A: 40A
- Accepted current rating AC23 category B: 40A
- Rated short-circuit making capacity Icm under 415 V AC: 1.33 kA
- Rated short-time withstand current Icw 1s: 0.94 kA
- Nominal tightening torque: 3.60 Nm
- Type of bottom connection for modular devices: Screw terminal
- Rated operational voltage Ue: 400V
- Type voltage supply: AC
- Rated insulation voltage Ui: 440V
- Rated impulse withstand voltage Uimp: 6000V
- Number of modules: 4
- Ingress Protection (IP) class: IP20
- Frequency: 50 - 60 Hz
- Number of NO contacts: 4
- Number of NC contacts: 0
- Operating temperature: -20 to 70°C
- Storage/transport temperature: -40 to 80°C
- Cross-section flexible conductor: 6 - 35 mm²
- Cross-section rigid conductor: 6 - 50 mm²
- Number of mechanical operations: 40000
- Electrical durability at nominal load in AC21: 2500 cycles
- Electrical durability at nominal load in AC22: 2500 cycles
- Total power loss under IN: 8.80 W
- Power loss per pole at In: 2.20 W
- Down connection alignment: Aligned terminal
- Top connection alignment: Aligned terminal
- Dimensions (H x L x W): 83mm x 70mm x 69mm
- Weight: 0.5 kg
Key Features
- High capacity 63A with 4 poles for robust performance
- Red toggle for clear indication of operation state
- IP20 protection rating suitable for indoor use
- Wide operating temperature range from -20°C to 70°C
- Compatible with flexible and rigid conductors
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure safety and compliance.
Applications
- Industrial: Suitable for machinery and high load devices
- Commercial: Suitable for building infrastructures
- General: High current applications requiring reliable switching
Standards & Compliance
- Compliant with IEC 60947-3 standards
Environmental Benefits
- Durable design ensures long lifecycle reducing environmental impact
- All materials adhered to stringent environmental compliance
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Hager 4-pole, 63A Modular Switch with Red Toggle is available now for immediate purchase, ideal for industrial and commercial applications requiring reliable and sturdy switches.
