4 Pole Switch Disconnector 160A | IP20 Protection | Surface Mounting | 690V by Eaton

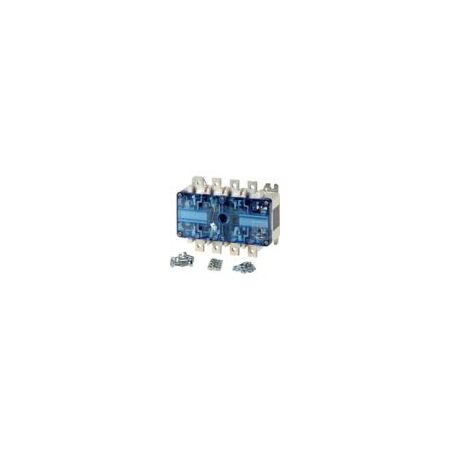

The Eaton DMV-160N/4 is a 4 pole switch disconnector with a 160A rated permanent current, ideal for main switch applications in industrial and commercial settings. Built for reliable performance, it features IP20 protection and surface mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Pole Switch Disconnector 160A | IP20 Protection | Surface Mounting | 690V by Eaton
Brand: Eaton
SKU: Y8-1814179
Alternatively Known As: Eaton DMV Switch Disconnector 160A, 4 Pole Main Switch, Eaton 4 Pole Disconnect Switch, Eaton DMV-160N/4 Switch
Technical Specifications
- Rated permanent current at AC-21, 400 V: 160 A
- Rated permanent current at AC-23, 400 V: 154 A
- Rated uninterrupted current (Iu): 160 A
- Switching power at 400 V: 90 kW
- Rated short-time withstand current (Icw): 8 kA for 1 second
- Rated impulse withstand voltage (Uimp): 8000 V
- Rated insulation voltage (Ui): 1000 V
- Rated operating voltage (Ue): 690 V
- Breaking current: 50 kA at In=160 A
- Degree of protection (front side): IP20
- Mechanical lifespan: 10,000 operations
- Connection type: Screw terminal, drilling dimension 6.5 mm
- Mounting method: Surface mounting
- Ambient operating temperature range: -25 °C to 55 °C
- Pollution degree: 3
- Terminal capacity: 75 mm² flat conductor connection with busbars
- Dimensions (H x L x W): 122mm x 59mm x 158mm
- Weight: 1.08 kg
Key Features
- 160 A rated permanent current at AC-21, 400 V
- 4 pole switch-disconnector
- Optional Stop Function
- Screw terminal connection with 6.5 mm drilling dimension
- Surface mounting
- Rated operational voltage up to 690 V
- Rated breaking capacity at 400/415 V: 1232 A
- Mechanical lifespan of 10,000 operations
- Rated short-time withstand current (Icw): 8 kA for 1 second
- Pollution degree 3
- IP20 degree of protection (front side)
- Auxiliary contact can be fitted by user
- Suitable for flat conductor connection with busbars up to 75 mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical system.
Applications
- Ground mounting
- Distribution board installation
- Main switch applications
- Emergency stop installations
- Maintenance/service switch applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
- Complies with RoHS directive, ensuring reduced hazardous substances.
Warranty Information
Warranty details are subject to Eaton's standard terms and conditions; typically includes coverage against manufacturing defects.
Available Now
The Eaton DMV-160N/4 Switch-disconnector is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
