Trade Discount 20%

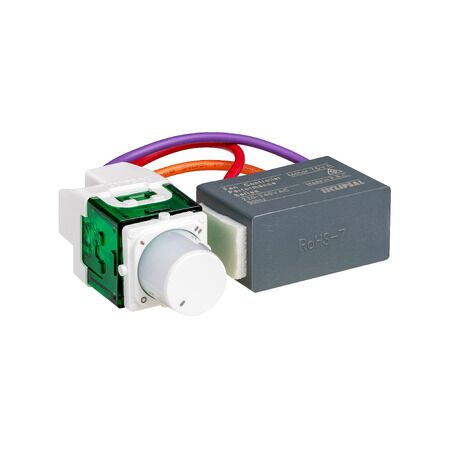

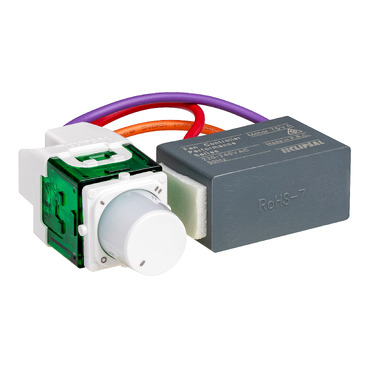

4-Position Rotary Switch | OFF-1-2-3 Control | 250V AC Rated | Vivid White Finish | by Clipsal
The 4-position rotary switch offers flexible control with OFF-1-2-3 settings, making it ideal for ceiling fans and multi-speed appliances. Rated for 250V AC and compatible with the Clipsal Iconic range, this switch features a modern vivid white finish and a robust mechanism for reliable operation. Perfect for both residential and commercial applications, it ensures energy-efficient control of your devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4-Position Rotary Switch | OFF-1-2-3 Control | 250V AC Rated | Vivid White Finish | by Clipsal
Brand: Clipsal
SKU: CLI40CSFMVW
Alternatively Known As: Clipsal 4-position rotary switch, Iconic rotary fan switch, CLI40CSFMVW, Clipsal fan speed controller, Clipsal rotary mechanism
Technical Specifications
- Switch Type: 4-position rotary (OFF-1-2-3)
- Voltage Rating: 250V AC, 75V DC
- Current Rating: 10A
- Finish: Vivid White
- Compatible Series: Clipsal Iconic
- Mounting: Mechanism module
- Dimensions (H x L x W): 23mm x 35mm x 23mm
- Weight: 0.1 kg
Key Features
- 4-position rotary switch: OFF-1-2-3 for flexible control
- Rated for 250V AC, 75V DC applications
- Compatible with Clipsal Iconic range
- Vivid White finish for modern aesthetics
- Robust mechanism for reliable operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential: Ceiling fans, exhaust fans, multi-speed appliances
- Commercial: Offices, retail spaces, hospitality venues
- General: Suitable for any application requiring a 4-position rotary switch
Standards & Compliance
- Complies with AS/NZS 3133 – Switches for appliances
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy-efficient control of fans and appliances by allowing users to select optimal speed settings, reducing unnecessary power consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal Iconic 4-Position Rotary Mechanism Switch (CLI40CSFMVW) is available for immediate purchase. Ideal for residential and commercial fan or appliance speed control applications.
