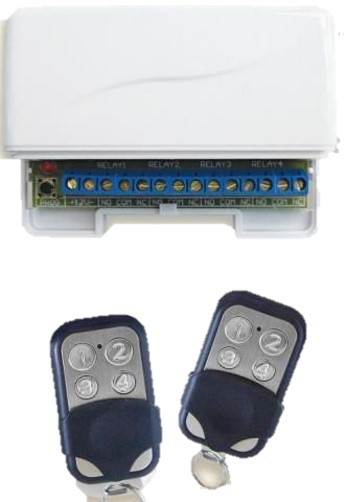

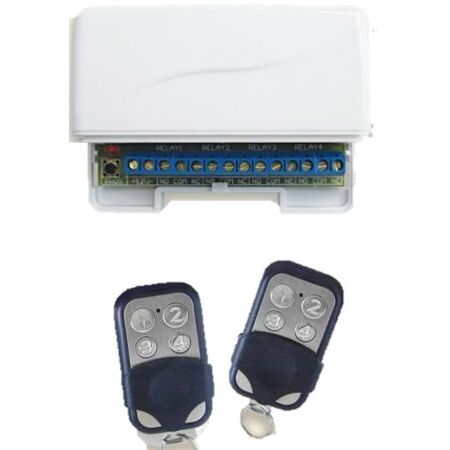

4-Relay Receiver with 2 Remote FOBs | SPDT Outputs | Expandable to 500 Remotes | by Dicker Data
The 4-Relay Receiver with 2 Remote FOBs is designed for seamless integration into security systems, featuring SPDT outputs and the ability to expand to 500 remotes. Ideal for both residential and commercial applications, this receiver ensures reliable control of electric devices and alarm functions, enhancing your security setup with low power consumption and long-lasting remote batteries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4-Relay Receiver with 2 Remote FOBs | SPDT Outputs | Expandable to 500 Remotes | by Dicker Data
Brand: Dicker Data
SKU: RSR-01
Alternatively Known As: 4-Relay Security Receiver, Remote Control Relay Module, Alarm Panel Relay Receiver
Technical Specifications
- Output: 4-relay outputs
- Relay Rating: SPDT; 1A 24VDC/120VAC
- Operating Voltage: 9-15VDC
- Current: 8-40mA
- Capacity: 25 remotes standard, expandable to 500
- Size: 90mm (L) x 60mm (W) x 28mm (H)
- Dimensions (H x L x W): 28mm x 90mm x 60mm
- Weight: 0.1 kg
Key Features
- 4-relay outputs with SPDT configuration
- Relay 3 and 4 programmable for latching or delay operation
- Keeloq rolling code for enhanced security
- Standard capacity of 25 remotes, expandable to 500
- Includes 2 remote FOBs with CR2032 batteries
- Mounting plate included for quick installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with alarm systems and safe electrical connections.
Applications
- Security systems for arm/disarm/panic functions
- Control of electric devices via alarm panels
- Residential and commercial alarm system integration
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 9-15VDC operating voltage
- Long-lasting remote FOB batteries reduce waste
Warranty Information
1 year warranty from the date of purchase covering manufacturing defects.
Available Now
The ACTIVOR 4-Relay Receiver with 2 FOBs is available for immediate purchase, ideal for enhancing security system control in residential and commercial applications.
