4 Way Amplifier Splitter | 1x HDMI Input | 4x HDMI Outputs | 4K Ready by Matchmaster
4 way amplifier splitter with 1x HDMI input and 4x HDMI outputs—ideal for home entertainment and commercial AV systems. Built for high-frequency response, with compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

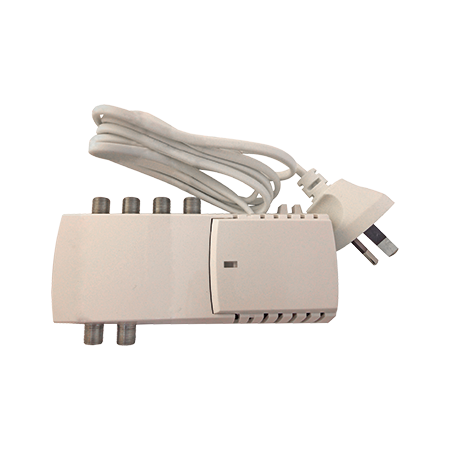

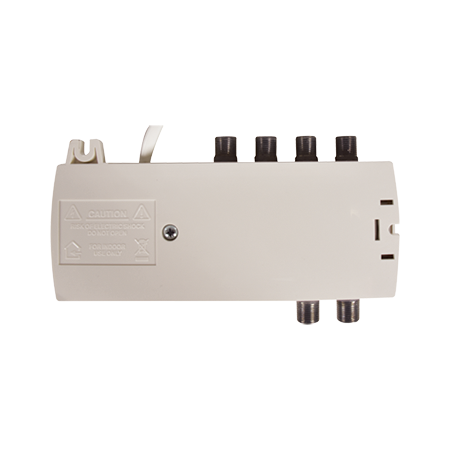

Product Name/Title: TERRA 4 Way Amplifier Splitter
Brand: Matchmaster
SKU: 10MM-AS38
Alternatively Known As: 4 Way Signal Amplifier Splitter, TV Signal Amplifier, Multi-way Amplifier Splitter
Technical Specifications
- Frequency Range: 47-862 MHz
- Gain: 20dB
- Gain Adjustment: 0 to -16dB
- Maximum Output Level IMD3=60dB (DIN45004B): 100 dBµV
- Input and Output Return Loss: >10dB
- Noise Figure: <5dB
- Test Point Attenuation: -20dB
- Port to Port Output Isolation: >16dB
- Power Consumption: 230V ~ 50 Hz 3W
- Operating Temperature Range: -20° to +50°C
- Dimensions (H x L x W): 40mm x 120mm x 150mm
- Weight: 0.5 kg
Key Features
- 4-way splitter amplifier with 20dB gain
- 16dB gain adjustment for optimal signal levels
- Built-in -20dB test port for signal testing without network disconnection
- Die-cast housing inside a heavy-duty plastic casing
- Maximum output level IMD3=60 dB (DIN45004B) 100 dBμV
- Low power consumption of 3 Watts
- Operating temperature range from -20° to +50°C
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal signal distribution and safety.
Applications
- Apartment signal amplification for multiple devices
- Residential and commercial TV signal distribution
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage and environmental impact
Warranty Information
Standard 1 year warranty against manufacturing defects.
Available Now
The Matchmaster TERRA 4 Way Amplifier Splitter 10MM-AS38 is available now for immediate purchase. Ideal for apartment and multi-device TV signal amplification applications.
