4 Way Coaxial Splitter | 5-2400MHz | Power Pass All Ports | Compact Design by Matchmaster
4 way coaxial splitter with 5-2400MHz frequency range and power pass all ports—ideal for residential and commercial signal distribution. Built for efficient performance, with compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

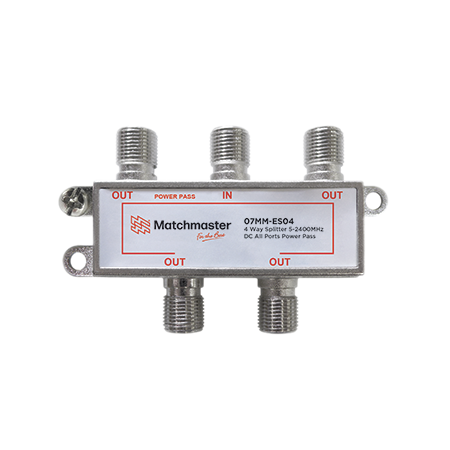

Product Name/Title: 4 Way Splitter 'F' Type 5-2400MHz Power Pass All Ports (Bag)
Brand: Matchmaster
SKU: 07MM-ES04
Alternatively Known As: F-type 4 way splitter, Satellite splitter, CATV splitter, Power pass splitter
Technical Specifications
- Frequency range: 5-2400MHz
- Insertion loss: ≤8.9dB (5-40MHz), ≤9.0dB (40-1000MHz), ≤9.5dB (1000-1750MHz), ≤12.2dB (1750-2400MHz)
- Mutual isolation: ≥18dB (5-40MHz), ≥20dB (40-2400MHz)
- Return loss: ≥10dB across all frequency ranges
- F-type all port DC power pass
- Dimensions (H x L x W): 20mm x 80mm x 60mm
- Weight: 0.1 kg
Key Features
- F-type all port DC power pass
- Frequency range 5-2400MHz suitable for CATV and satellite
- Cost-effective solution
- Available in multiple way options (2, 3, 4, 6, 8)
- Individually packaged in polybags to minimize waste and maximize storage
Professional Installation Requirements
- Installation by a qualified technician or professional installer is recommended to ensure optimal performance and compliance with electrical standards.
Applications
- Domestic CATV installations
- MATV (Master Antenna Television) systems
- Satellite frequency range applications
- Free-to-air (FTA) satellite systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Individually packaged in simple polybags to reduce packaging waste
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 4 Way Splitter 'F' Type 5-2400MHz Power Pass All Ports is available now for immediate purchase. Ideal for domestic and MATV satellite and CATV installations.
