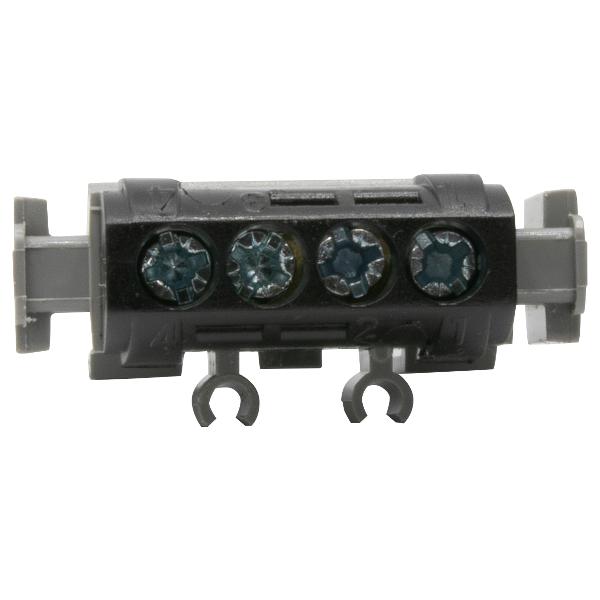

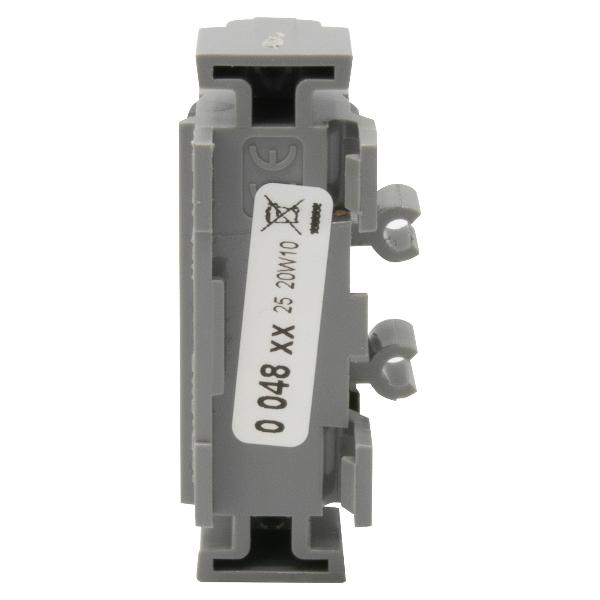

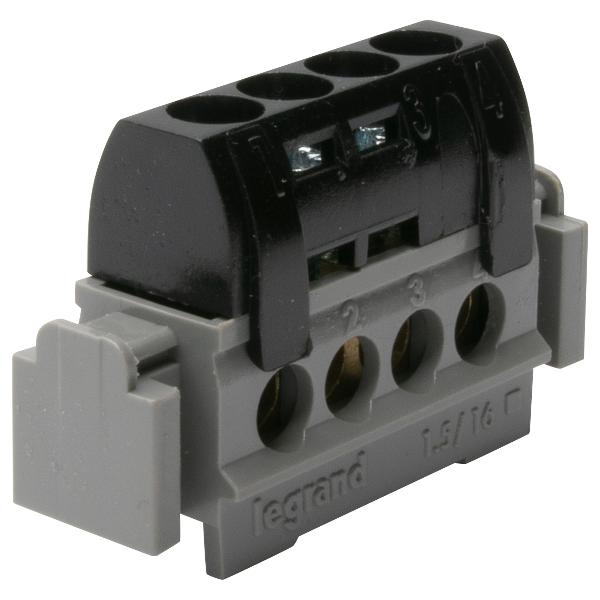

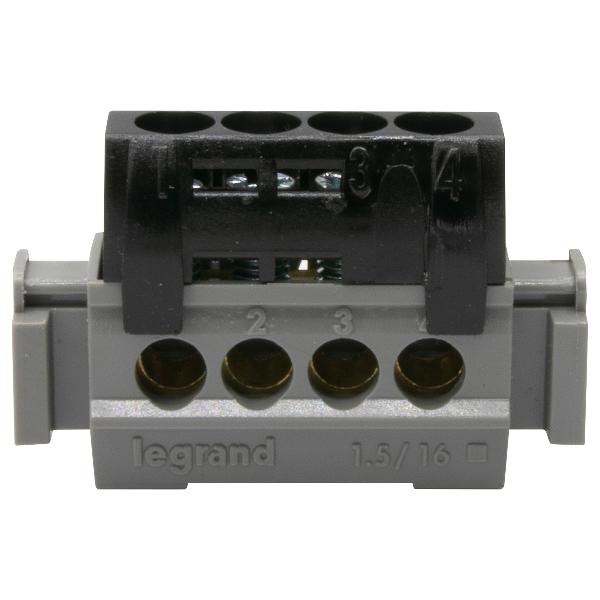

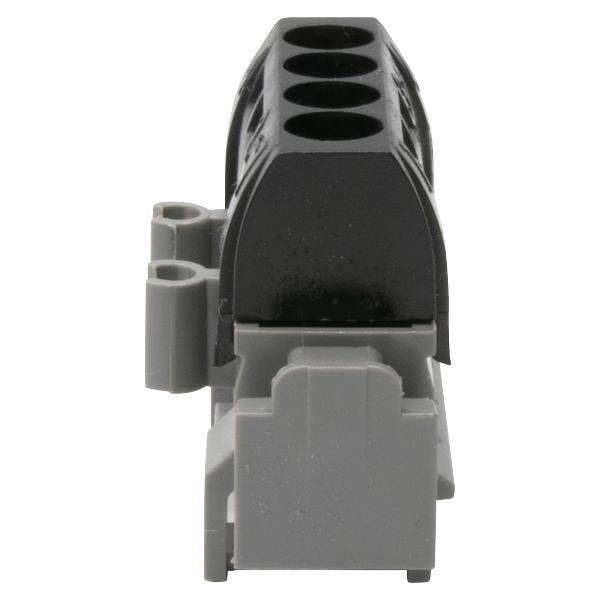

4 Way Terminal Block | IP2X Rated | Black Cover | 100A Max by Legrand
4 way terminal block with IP2X rating and black cover—ideal for industrial and commercial electrical panels. Built for durability with brass and zinc-plated steel, supporting up to 100A current.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Way Terminal Block | IP2X Rated | Black Cover | 100A Max by Legrand
Brand: Legrand
SKU: 04850
Alternatively Known As: 4 Way Terminal Block, IP2X Terminal Block, Electrical Terminal Block, Distribution Terminal Block
Technical Specifications
- Material: Brass and zinc-plated bichromated steel
- Current rating: 100 A max with 25 mm² input, 80 A max with 16 mm² input
- Voltage rating: 400 V~
- Number of connections: 4 x 1.5 to 16 mm²
- IP Rating: IP2X
- Length: 47 mm
- Mounting: Symmetrical or asymmetrical rail with universal support Cat.No 04811 or 12 x 2 flat
- Dimensions (H x L x W): 89mm x 101mm x 58mm
- Weight: 0.25 kg
Key Features
- Constructed with brass and zinc-plated bichromated steel for durability
- Black removable cover for easy identification of neutral or phase
- Can be combined with extra supports and universal terminal block supports
- IP2X rated for safety
- Supports 4 connections from 1.5 to 16 mm²
- Max current 100 A with 25 mm² input, 80 A with 16 mm² input
- Length of 47 mm
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Electrical distribution and connection in industrial and commercial electrical panels
- Use with Plexo³ range, HL, and XL³ 125 enclosures
- Suitable for mounting on symmetrical or asymmetrical rails
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Supports efficient electrical distribution reducing energy losses
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand 4 Way IP2X Terminal Block with Black Cover is available now for immediate purchase. Ideal for electrical distribution and connection in industrial and commercial electrical panels.
