400A Circuit Breaker | 3 Pole 3P3D | Fixed Thermal-Magnetic Trip | 36kA Breaking Capacity | @Pack of 1 | by Clipsal
The 400A Circuit Breaker is designed for high-capacity protection in commercial and industrial electrical distribution systems. Featuring a 3 pole, 3 direct (3P3D) configuration and a fixed thermal-magnetic trip unit (ETS 2.3), it ensures reliable circuit protection with a high breaking capacity of 36kA at 415V AC. Ideal for switchboards and panel boards, this breaker complies with international standards for enhanced safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

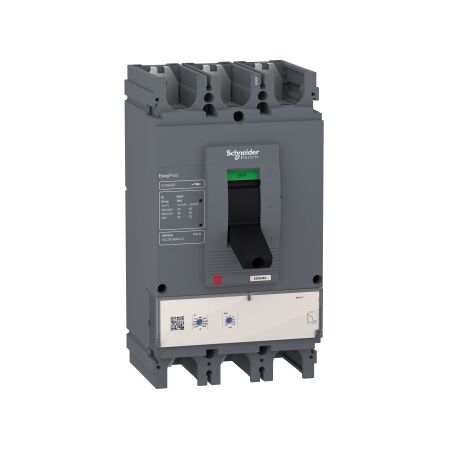

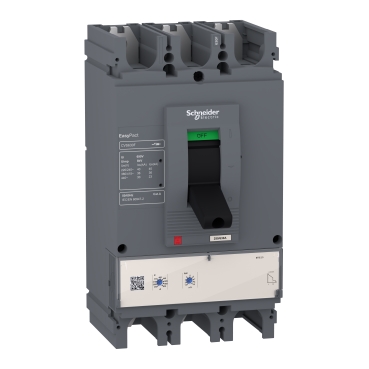

Product Name/Title: 400A Circuit Breaker | 3 Pole 3P3D | Fixed Thermal-Magnetic Trip | 36kA Breaking Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV540505
Alternatively Known As: 400A MCCB, 3 Pole Circuit Breaker, Easypact CVS400F, SCHLV540505, Industrial Circuit Breaker, Clipsal MCCB
Technical Specifications
- Rated current: 400A
- Number of poles: 3
- Trip unit: Fixed thermal-magnetic (ETS 2.3)
- Breaking capacity: 36kA at 415V AC
- Rated operational voltage: 690V AC
- Mounting: Fixed
- Standards: IEC 60947-2, AS/NZS 60947.2
- Frequency: 50/60Hz
- Utilization category: A
- Terminal type: Direct connection
- Dimensions (H x L x W): 255mm x 110mm x 140mm
- Weight: 7.5 kg
Key Features
- 400A rated current for high-capacity protection
- 3 pole, 3 direct (3P3D) configuration
- Easypact CVS series for reliable circuit protection
- Fixed thermal-magnetic trip unit (ETS 2.3)
- High breaking capacity for enhanced safety
- Compact design for easy installation
- Complies with international and Australian standards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panel boards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy efficiency by minimizing electrical faults and downtime
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CVS400F ETS 2.3 400A 3P3D Circuit Breaker (SCHLV540505) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
