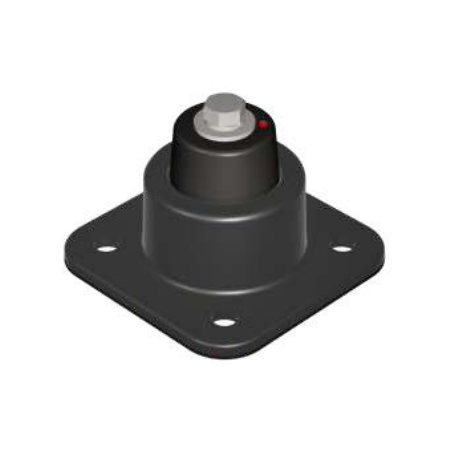

40A Duro Seismic Mount | 1000 N Compression | 500 N Tension | 250 N Shear | Red Elastomer | by Aspen Pumps
The 40A Duro Seismic Mount is designed for effective vibration isolation, featuring a robust 1000 N compression capacity and 500 N tension capacity. Ideal for industrial machinery and HVAC systems, this durable red elastomer mount enhances seismic protection and minimizes noise pollution, ensuring longevity and safety in construction applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 40A Duro Seismic Mount | 1000 N Compression | 500 N Tension | 250 N Shear | Red Elastomer | by Aspen Pumps
Brand: Aspen Pumps
SKU: ASRM5040
Alternatively Known As: Seismic Mount, Vibration Isolator, High Seismic Mount, 40A Duro Mount
Technical Specifications
- Rated Capacity Compression: 1000 N
- Rated Capacity Tension: 500 N
- Rated Capacity Shear: 250 N
- Material: 40A Duro red elastomer
- Height: 50mm
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Rated Capacity Compression: 1000 N
- Rated Capacity Tension: 500 N
- Rated Capacity Shear: 250 N
- Durable 40A Duro red elastomer material
- 50mm height for effective seismic isolation
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with seismic mounting and building codes.
Applications
- Seismic vibration isolation for mechanical and electrical equipment
- Industrial machinery mounting
- HVAC systems requiring vibration damping
- Building and construction seismic protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces structural damage during seismic events, enhancing building longevity
- Minimizes noise and vibration pollution
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Pumps 40A Duro Red 50mm High Seismic Mount is available for immediate purchase, ideal for seismic vibration isolation in industrial and construction applications.
