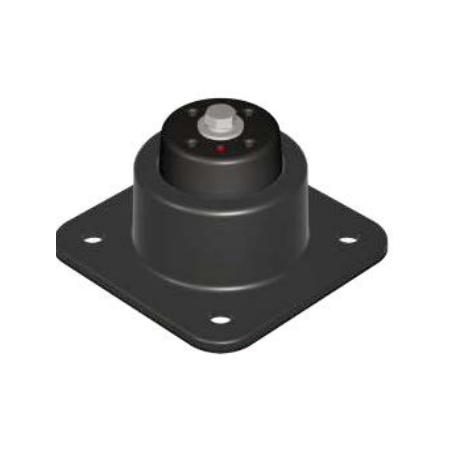

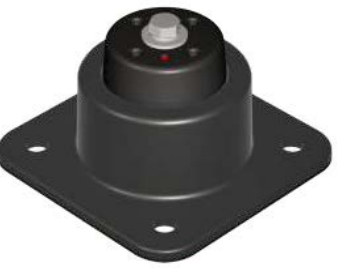

40A Duro Seismic Mount | 2000 N Compression | 1000 N Tension | Red Elastomer | by Aspen Pumps
The 40A Duro Seismic Mount is designed for effective seismic vibration isolation, featuring a robust 2000 N compression capacity and 1000 N tension capacity. Ideal for mounting pumps, compressors, and HVAC systems in industrial and commercial settings, this durable red elastomer mount enhances equipment longevity and minimizes structural damage during seismic events.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 40A Duro Seismic Mount | 2000 N Compression | 1000 N Tension | Red Elastomer | by Aspen Pumps
Brand: Aspen Pumps
SKU: ASRM7540
Alternatively Known As: Seismic Mount, Vibration Isolator, 40A Duro Seismic Mount, Red Elastomer Mount
Technical Specifications
- Rated Capacity Compression: 2000 N
- Rated Capacity Tension: 1000 N
- Rated Capacity Shear: 450 N
- Height: 75mm
- Material: High durometer elastomer (Red)
- Dimensions (H x L x W): 75mm x 75mm x 75mm
- Weight: 0.3 kg
Key Features
- Rated Capacity Compression: 2000 N
- Rated Capacity Tension: 1000 N
- Rated Capacity Shear: 450 N
- 75mm height for effective seismic isolation
- Durable red durometer elastomer for long-lasting performance
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper seismic isolation and compliance with building codes.
Applications
- Seismic vibration isolation for mechanical equipment
- Mounting for pumps, compressors, and HVAC systems
- Industrial and commercial building seismic protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces structural damage during seismic events, minimizing repair waste
- Enhances equipment longevity, reducing replacement frequency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Pumps 40A Duro Red 75mm High Seismic Mount is available now for immediate purchase. Ideal for seismic vibration isolation in industrial and commercial mechanical equipment.
