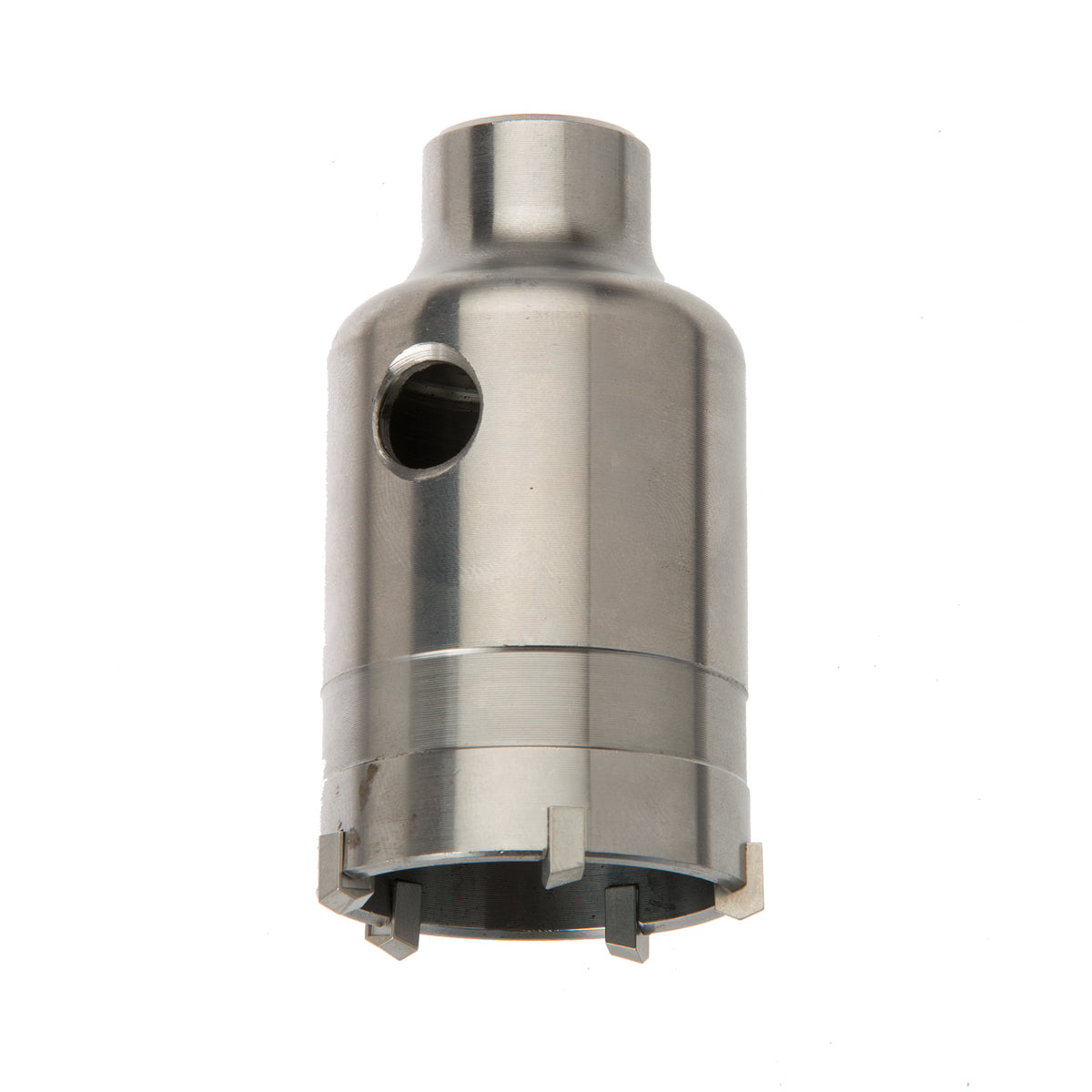

40mm HSM Core Drill | Ultra Thin Wall Design | Tungsten Carbide Tips | Rotary & Impact Mode | by Promac
The 40mm HSM Core Drill is engineered for SDS Plus machines, featuring an ultra-thin wall design that is 50% lighter than traditional core drills. With ultra-hard tungsten carbide tips, it ensures increased wear resistance and operates in both rotary and impact modes. Perfect for plumbing and electrical applications in masonry, this drill delivers rapid action and precision for efficient drilling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 40mm HSM Core Drill | Ultra Thin Wall Design | Tungsten Carbide Tips | Rotary & Impact Mode | by Promac
Brand: Promac
SKU: CL40S
Alternatively Known As: 40mm Masonry Core Drill, SDS Plus Core Drill 40mm, High Speed Masonry Core Drill 40mm
Technical Specifications
- Machine best suited for SDS Plus
- Core drill wall thickness: 2.5mm ultra thin wall
- Teeth material: Ultra hard tungsten carbide tips
- Operating action: Rotary and Impact mode or Rotary only mode
- Thread: M16 x 2.0
- Recommended speed: Larger diameter cores require slower speeds if speed regulation is possible
- Material recommendations: General concrete, hard bricks, soft bricks, lightweight blocks, natural stone, constructional granite, limestone
- Made in Sheffield, UK
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.3 kg
Key Features
- Rapid action core drill matched to SDS Plus machines
- Speeds up to 35% faster with minimal breakthrough
- Lightweight 2.5mm ultra thin wall design, 50% lighter than traditional core drills
- Unique Armeg original ball-locking & pilot drill system for quick pilot/arbor interchange
- Precision machined arbor flats for easy separation of core assembly
- Ultra hard tungsten carbide tips for increased wear resistance
- Machined Tommy Bar hole for hassle-free disconnection
- Operates in rotary and impact mode or rotary only mode
Professional Installation Requirements
- Use with SDS Plus or Hex driven machines by trained operators. Follow safety guidelines for power tool use and wear appropriate PPE.
Applications
- Plumbing and electrical applications in brick, block, masonry
- Drilling waste pipes, water feed pipes, cable entry/exit
- Flue passage, extractor fans, exhausts, dust extractor ducting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Lightweight design reduces material usage and energy consumption during use
- Durable tungsten carbide tips extend tool life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Promac warranty terms for details.
Available Now
The Promac 40mm HSM Core Drill is available for immediate purchase, ideal for professional plumbing, electrical, and construction drilling applications.
