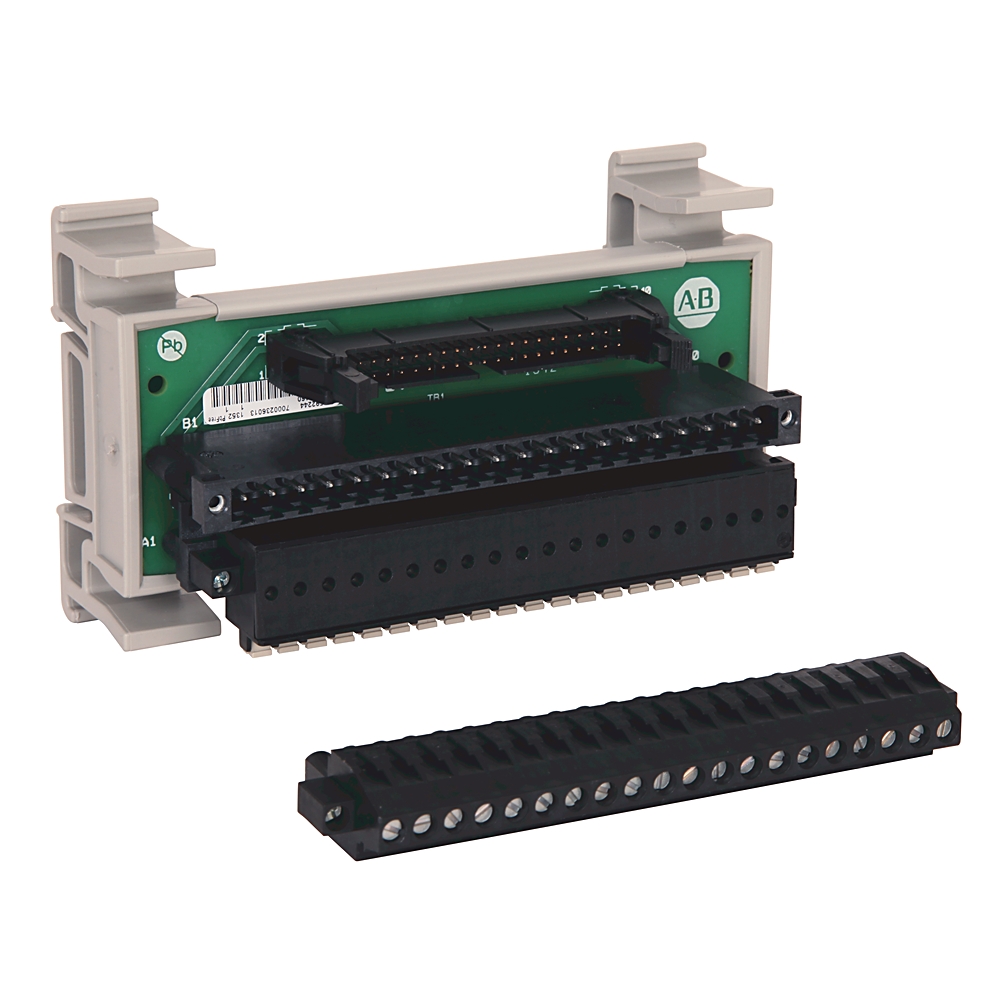

40Pin LED Diagnostic Module 24V DC AC 2-Point RTB Functionality Clear Status Indicators by AB IFM

BRAND: Allen-Bradley
SKU: 1492RIFM40D24A2
$1,341.40 List price: $1,671.50
+ −
30 Days Return Electricians Unlock Trade Access
The 40Pin LED Diagnostic Module operates on a 24V DC/AC power supply, providing clear LED status indicators for effective machine diagnostics. Ideal for industrial automation systems and control panels, this module features 2-point RTB functionality, ensuring reliable performance in monitoring applications. Its durable design minimizes waste, making it a smart choice for energy-efficient operations.

Alternatively Known As: 40Pin LED Diagnostic Module, IFM LED Diagnostic Display, 24V LED Diagnostic Indicator

Technical Specifications
  • Power Supply: 24V DC/AC
  • Pin Configuration: 40-pin connector
  • Diagnostic Type: LED status indicators
  • Functionality: 2-point RTB
  • Operating Temperature: -20°C to 60°C
  • Mounting: Panel mount compatible
  • Dimensions (H x L x W): 20mm x 70mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 40-pin digital LED diagnostics for clear status indication
  • Operates on 24V DC/AC power supply
  • 2-point RTB (Return to Base) functionality
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
  • Industrial automation systems
  • Machine diagnostics and monitoring
  • Control panels and electrical cabinets
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption reduces energy usage in industrial applications
  • Durable design minimizes waste and replacement frequency
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB IFM Digital 40Pin LED Diagnostics 24V DC/AC 2/PT RTB is available for immediate purchase, ideal for industrial automation and control system diagnostics.
