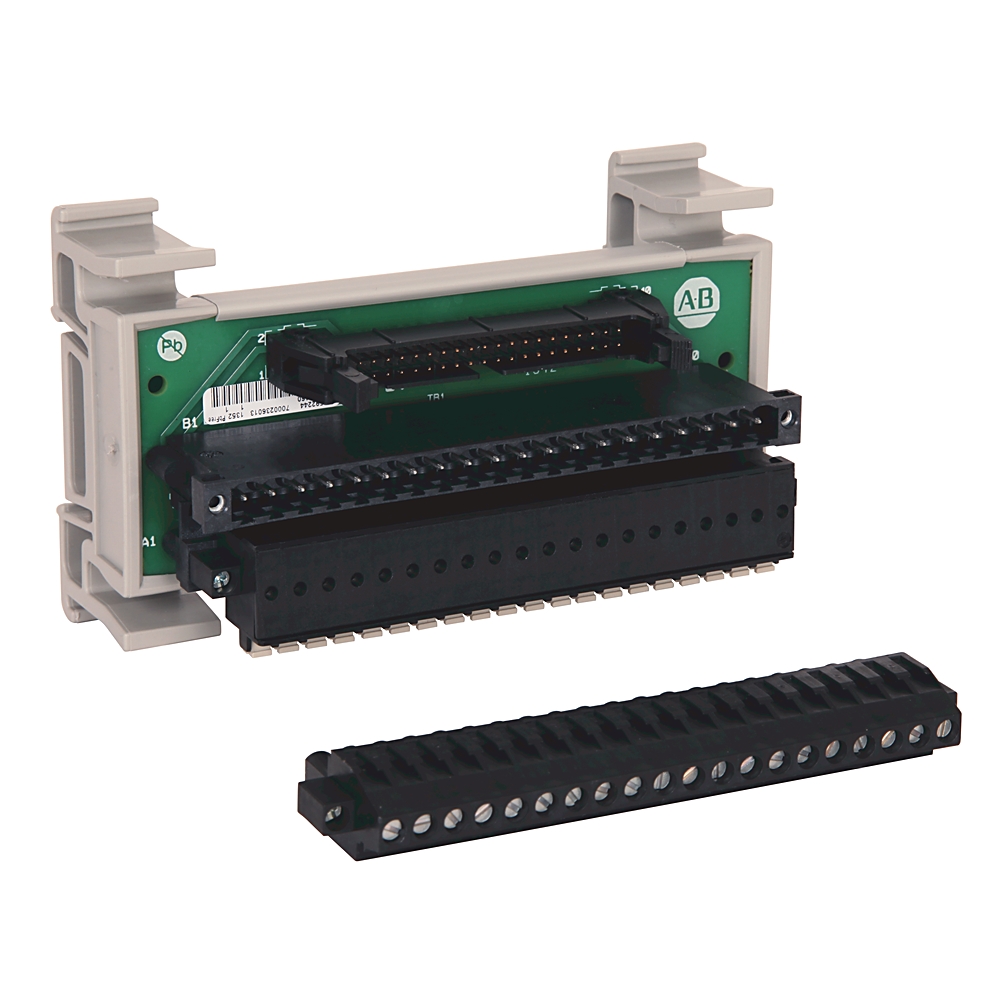

40Pin LED Diagnostic Module 24V DC AC Digital Status Indication Single Point RTB by IFM

BRAND: Allen-Bradley
SKU: 1492RIFM40D24
$876.60 List price: $1,092.40
+ −
30 Days Return Electricians Unlock Trade Access
The 40Pin LED Diagnostic Module operates on 24V DC/AC power, providing clear digital status indications for industrial automation systems. With single point RTB functionality, it's perfect for machine diagnostics and control panels, ensuring efficient monitoring and compliance with AS/NZS 3000 standards.

Alternatively Known As: 40Pin LED Diagnostic Module, 24V LED Diagnostic Indicator, IFM LED Diagnostic Display

Technical Specifications
  • Input Voltage: 24V DC/AC
  • Pin Configuration: 40-pin connector
  • LED Diagnostics: Digital status indication
  • Functionality: 1/PT RTB
  • Operating Temperature: -20°C to 60°C
  • Dimensions (H x L x W): 30mm x 70mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 40-pin digital LED diagnostics for clear status indication
  • Operates on 24V DC/AC power supply
  • Single point RTB (Return to Base) functionality
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or technician experienced with industrial control systems.
Applications
  • Industrial automation systems
  • Machine diagnostics and monitoring
  • Control panels and electrical cabinets
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption reduces energy usage in industrial settings
  • Durable design minimizes waste and replacement frequency
Warranty Information

1 year limited warranty covering manufacturing defects.

Available Now

The AB IFM Digital 40Pin LED Diagnostics 24V DC/AC 1/PT RTB is available now for immediate purchase. Ideal for industrial automation and diagnostic applications.
