Trade Discount 25%

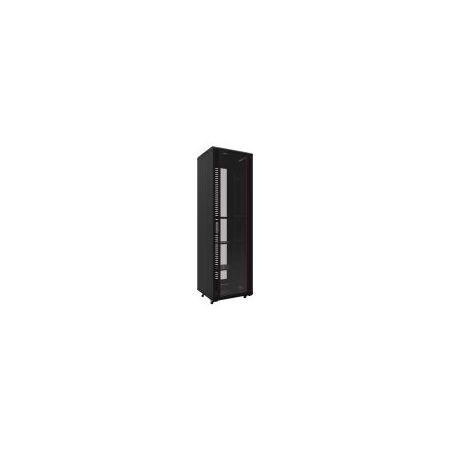

42RU 600x1000mm Floor Standing Data Cabinet A5 Series Redback
Redback 42RU A5 floor standing cabinet features 600mm wide 1000mm deep welded frame, glass front door, vented lockable rear door, and castors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 42U Server Rack Cabinet, 19-Inch Network Cabinet, Floor Standing Data Rack, A5.6042 Cabinet
Technical Specifications
- Rack Capacity: 42RU
- Mounting Format: 19-inch rack equipment
- Rack Type: Floor standing, fully enclosed
- Construction: Rigid welded steel frame
- Material Thickness: 1.2–1.5mm steel panels; 2.0mm mounting profiles
- Static Load Capacity: Up to 800kg on levelling feet
- Front Door: Lockable toughened glass
- Rear Door: Lockable vented steel door
- Mounting Rails: Repositionable front and rear vertical rails
- Cable Entry: Removable top and bottom cable entry plates
- Included Accessories: 3 shelves and 40 cage nuts
- Mobility: Heavy-duty castors with levelling feet
- Finish: Powder-coated steel
- Ingress Protection: IP20
- Cooling Compatibility: Compatible with quick-install modular fan trays
- Earthing: Earth continuity leads fitted to each panel
- Standards: ANSI/EIA RS-310-D, DIN 41497 Part 1, IEC 297-2, DIN 41494 Part 7 and ETSI requirements
- Dimensions (H x L x W): 2055mm x 1000mm x 600mm
- Weight: 118 kg
Key Features
- 42RU capacity for servers, switches, patch panels, UPS equipment and other 19-inch rack hardware
- Fully assembled welded frame for improved structural strength
- Toughened glass front door provides equipment visibility and controlled access
- Vented lockable rear door supports airflow while securing installed equipment
- Removable side panels simplify equipment installation and servicing
- Repositionable mounting rails accommodate different equipment depths
- Top and bottom cable entry plates support flexible cable routing
- Heavy-duty castors and levelling feet support positioning and final installation
- Supplied with shelves and cage nuts
- Compatible with modular fan tray accessories
Applications
- Server rooms and data centres
- Telecommunications and communications rooms
- Network infrastructure and patch-panel installations
- Security, surveillance and access-control equipment housing
- Audio-visual and broadcast equipment installations
- Commercial and industrial IT equipment storage
Environmental Benefits
- Powder-coated steel construction is durable and recyclable at end of service life
- Long cabinet service life can reduce replacement frequency and associated material waste
- Vented construction can support passive airflow and reduce reliance on active cooling in suitable installations
- Modular shelves, rails and accessories allow the cabinet to be reconfigured rather than replaced
Warranty Information
24-month warranty applies to Redback Racks products through Australian distribution channels; Australian Consumer Law rights also apply.
Available Now
Available through authorised REDBACK_RACKS distributors in Australia.
