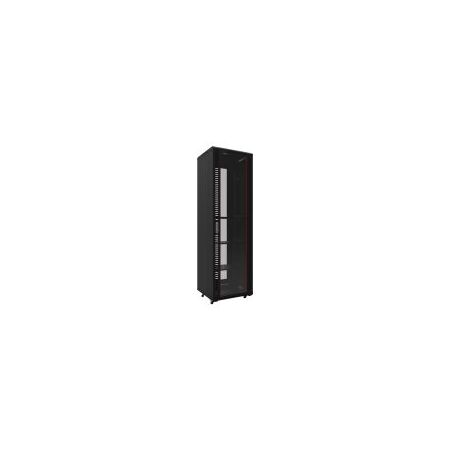

42RU 600x600mm Floor Standing Data Cabinet A5 Series Redback
Redback 42RU A5 floor standing cabinet features 600mm wide 600mm deep welded frame, glass front door, vented lockable rear door, and castors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 42RU Network Cabinet, 42RU Server Rack, 19-inch Floor Standing Rack, Redback A5.6642
Technical Specifications
- Rack Capacity: 42RU
- Rack Format: 19-inch standard
- Rack Type: Floor standing
- External Width: 600mm
- External Depth: 600mm
- Construction: Welded steel frame
- Panel Thickness: 1.2–1.5mm steel panels; 2.0mm mounting profiles
- Mounting Rails: Adjustable and repositionable front and rear 19-inch rails
- Load Capacity: Up to 800kg on levelling feet
- Front Door: Lockable toughened glass door
- Rear Door: Lockable vented metal door
- Cable Entry: Removable top and bottom cable entry plates
- Included Accessories: Three shelves, 40 cage nuts, castors and levelling feet
- Finish: Powder-coated black
- Ingress Protection: IP20
- Earth Continuity: Earth continuity leads fitted to panels
- Cooling Compatibility: Compatible with modular fan systems
- Dimensions (H x L x W): 2055mm x 600mm x 600mm
- Weight: 96 kg
Key Features
- 42RU capacity for 19-inch network, telecommunications and server equipment
- Compact 600mm x 600mm floor-standing footprint
- Rigid welded frame supplied fully assembled
- Lockable toughened glass front door for equipment visibility and security
- Vented, lockable rear door to support airflow
- Removable side panels for easier equipment access
- Adjustable front and rear mounting rails
- Heavy-duty castors with levelling feet included
- Removable top and bottom cable entry plates
- Supplied with three shelves and 40 cage nuts
- Supports up to 800kg when positioned on levelling feet
- Compatible with Redback Racks fan trays, cable management and power distribution accessories
Professional Installation Requirements
- No specialist installation is required for the empty cabinet. Position it on a level floor, fit the levelling feet before loading equipment and secure or anchor the cabinet where required for stability. Equipment, power distribution and cabling should be installed by suitably qualified personnel in accordance with the equipment manufacturers’ requirements.
Applications
- Network switch and patch panel installations
- Server and storage equipment housing
- Telecommunications and structured cabling systems
- Security, CCTV and access control infrastructure
- UPS and rack-mounted power equipment
- Commercial, industrial, education and government communications rooms
- Data rooms and equipment closets
Environmental Benefits
- Steel construction can be recycled at end of service life
- Durable welded construction can extend service life and reduce replacement waste
- Vented rear-door design supports passive airflow and may reduce reliance on active cooling for suitable low-heat installations
- Removable panels and standardised accessories support repair, reconfiguration and reuse rather than disposal
Warranty Information
24-month warranty applies to the Redback Racks cabinet range, subject to the supplier’s warranty terms and conditions.
Available Now
Available through authorised Redback Racks distributors in Australia.
